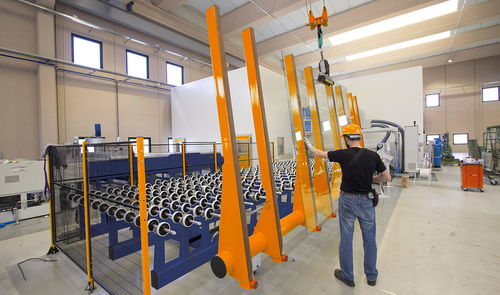

Laminated glass production line

– Automatic and semi-automatic lines to meet customer needs. – Straight and “U-shape” lines to fit space requirements. – PVB unwinding and storage unit. – Sandwich of glass and PVB up to 80 mm. – Max. working width: from 1600 mm to 3300 mm. – Max. glass lenght 6000 mm. – Glass panel tracking device. WASHING The glass is positioned onto the tilting arms of the loading table and is conveyed by means of wheel shafts to the washing machine. Brushes and air knives adjust automatically in function of glass thickness. The upper part of the machine lifts of 500 mm (motorized opening) for cleaning and maintenance operations. Glass thickness up to 25 mm. can be processed.ASSEMBLING Once cleaned the glass enters the assembly room and is aligned at a front and a side reference. The transfer unit with suction cups moves the glass to the assembling table. Suction cups are equipped with self-exclusion valve to adjust to glass size, and are made in special rubber not to leave any mark on the glass surface. PVB film is laid down and cut by automatic or manual system.
