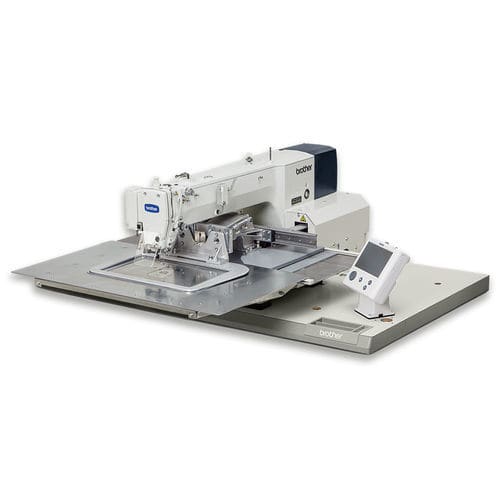

Lockstitch sewing machine BAS-342J
single-needlesingle-threadfor bags

lockstitch sewing machine
lockstitch sewing machine
lockstitch sewing machine
Add to favorites
Compare this product


Characteristics

Stitch type
lockstitch
Number of needles
single-needle
Number of wires
single-thread
Applications
for bags, for shoe, for jeans, for automotive applications
Configuration
fixed
Control
with touch screen control
Drive type
direct-drive
Stitch length

Min.: 0.05 mm
(0.002 in)

Max.: 12.7 mm
(0.5 in)

Weight

174 kg
(384 lb)

Description

・World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing ・Great Needle Penetration ・High Energy Saving ・Best User Experience with LCD Touch Panel World’s Top-class Sewing Speed of 2,800sti/min with High Quality Sewing Higher rigid feed mechanism was adopted while achieving the world’s top-class sewing speed of 2,800sti/min. With its accurate stitch point, the machine can perform beautiful stitching with stable thread tightening. Great Needle Penetration Powerful motor(550W) outputs large amounts of torque even at slow speeds so that strong needle penetration force can be obtained. If the needle penetration resistance increases, vibration control(intermittent impact) automatically increases the penetration force. Digital Tension* and Thread Breakage Detector as Standard Equipment The upper thread tension can be digitalized with the Digital Tension, providing stable stitching. No more relying on individual feel. When thread breakage is detected, sewing operation is stopped automatically and a warning is given to the operator, leading to the less detectives. Best User Experience with LCD Touch Panel 7-inch large screen and easy programming functions via LCD touch panel enable an intuitive operation. It is easily understood without the instruction manual or previous experience in fewer steps.
