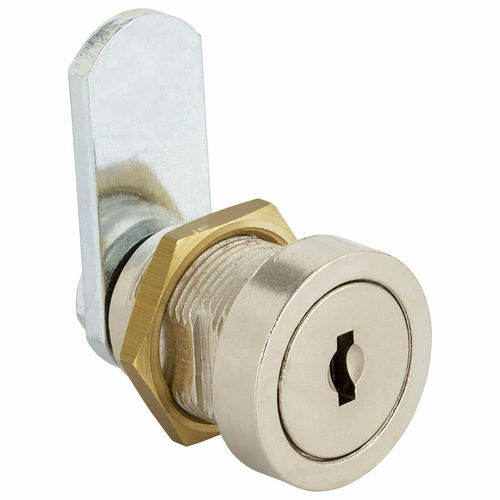

Cylinder lock ZS 84

The BURG-WÄCHTER universal cylinder ZS 84 is made of high-strength and additionally nickel-plated die-cast zinc. The cylinder can be used in many areas.With the help of one of the two reversible keys supplied, opening and closing the disc cylinder is particularly effortless. The bolt can be adjusted at a 90-degree angle. The right cylinder for your application The universal cylinder ZS 84 is designed for a material thickness of 1-12 mm and can therefore be used extremely flexibly. When mounting, fix the cylinder securely with a fastening nut. During installation, make sure that the key remains in the lock until after installation is complete.Optionally, the universal cylinder ZS 84 is also available in a keyed alike version. Features • made of high-tensile, nickel-plated die-cast zinc • disk cylinder with reversible key • bolt adjustable in 90° angle • ZS 76, 77, 77 H, 84-86: with mounting nut Technical Data Packaging unit 10.00 pcs Weight 0,071 kg Drill hole diameter 16,1*19,1 For material thickness from, to 1 - 12 mm Pivoting range 180° Cylinder diameter 24 Main material Zinc die casting Incl. fixing material yes Logistics Packaging width mm 0,00 mm Packaging depth mm 0,00 mm Type of packaging (carton, blister) loose
