Short path evaporator KWS, KWB, KWF

vacuumthermalthin-film

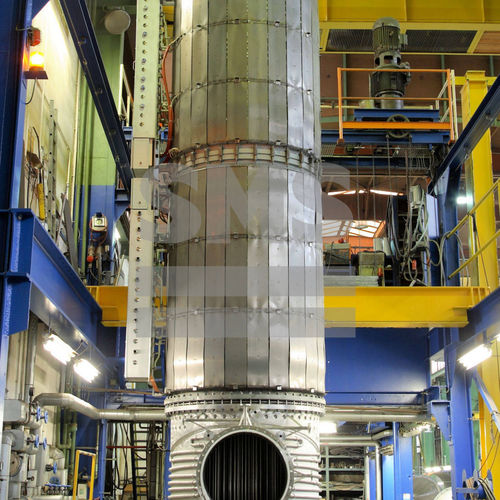

Short path distillation is a thermal separation technology operating at process pressures in the range of 1 to 0,001 mbar. It lowers the boiling temperature and is an excellent method for gentle thermal treatment of heat sensitive, high boiling products. The short path evaporator consist basically of a cylindrical body with a heating jacket, a rotor and an internal condenser. The rotor creates a mechanically agitated, thin product film on the heating surface inside of the body. By means of gravity the product flows down in a spiral path, whereby the volatile portion of the product evaporates. The vapour passes by the shortest route and with practically no pressure drop to the internal condenser. The non-volatile portion reaches the lower part of the evaporator and is discharged through the bottom product outlet. The residual vapours and inert gases flow through the vacuum nozzle to the vacuum system.
