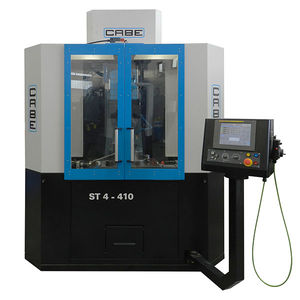

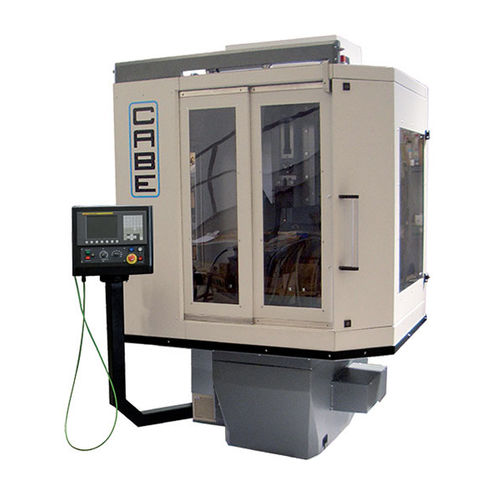

CNC slotting machine TTF3

3-axis

Slotting machine with three controlled axes and rod-crank system for the movement of the tool. A modern and technological range characterized by three controlled axes and various models with different strokes of the tools. The Fanuc 0i-MF control with intuitive graphical and customized interface allows the programming of gradual incremental feeds. Technical Characteristics Monolithic structure made of cast iron to ensure precision cutting with vibration absorption during machining. Universal tool holder “V” shape. Automatic disconnection of the tool during ascent phase. Minimal lubrication system of the tools (en- tire oil available on demand) Tilting head +/- 20°. The main slide is driven by a self-braking three-phase asynchronous motor. The controlled axes are moved by brushless motors and managed directly by the control. The main screw is a preloaded recirculating ballscrew. FANUC Control. Practical and removable chip collection tank, located below the table. Work area illuminated and protected by safety guards with block microswitch. Head characterized by linear guides. Sliding guides rectified and lubricated with automatic pump, managed by the control. CE certification. Tool holder with high repeatability that guarantees that the tools are always at the centre of the hole; designed for Cabe Tools. Displaying of the manual axes. Displaying of the manual swivel-table. Tower lamp signalling the machine status. Automatic chip conveyor. Hand wheel for manual movement.
