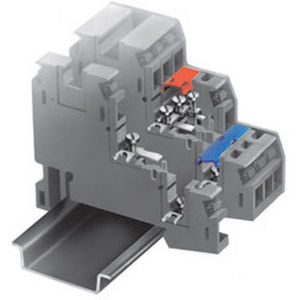

DIN rail-mounted terminal block TLS

triple-levelfeed-through

For the installation on limited longitudinal space where high density wiring is needed together with reliable insulation, special feed-through two/three level terminal blocks are available. The three level terminal blocks are suitable for circuits which are to be used and connected with specific equipment, as for example proximity sensors. In fact with the combined use of TLS.2 and TLD.2 terminal block, both the feeding and the signal carrying conductors of the proximity sensors can be economically and efficiently connected. Particularly in the TLS.2 terminal block, the intermediate and lower levels can be used to feed the sensors in d.c.; the feeding is distributed on the adjoining elements of the terminal board by means of a special LOCK connection system
