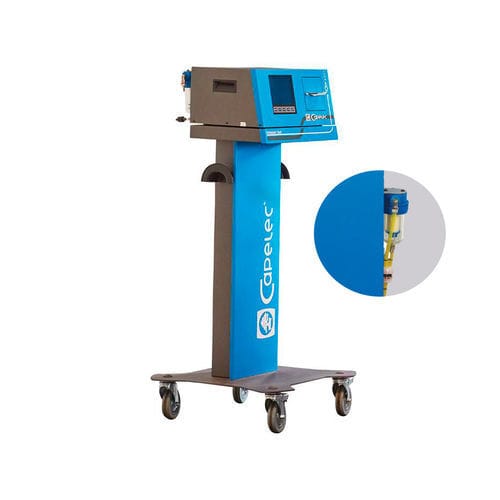

Exhaust gas analyser CAP3201 G

hydrocarbon gasCO2/02CO

Overview
Designed for workshops and PTI centers, the CAP3201 analyzes emissions from gasoline, LPG and CNG engines: cars, mopeds, motorcycles, light commercial vehicles and forklifts. Dual mode allows pre-inspection measurement or flue gas analysis: multi-gas analysis and technical control. Test reports can be printed on the built-in thermal printer. The unit can be associated with optional modules and accessories such as RPM measurement, EOBD, and an opacity cell to create a combined petrol and diesel emission analyser.

4 gas concentration

• Hydrocarbon (HC)
• Oxygen (O2)
• Carbon monoxide (CO)
• Carbon Dioxide (CO2)

Main features

• LCD screen
• Built-in thermal printer
• Mobile trolley
• RPM inductive and piezo sensor (options)
• NOx analysis function (option)

Technical data (summary)

• Dual mode: Diagnostic and Vehicle inspection (PTI)
• Concentration measurement: HC, O2, CO, CO2
• Preheating: < 9 minutes at 0°C (1 minute minimum) for optimal performance
• Operation temperature: -10°C to 55°C
• Response time: < 5 seconds
• Atmospheric pressure range: 750 mBar to 1150 mBar
• Lambda range: 0 to 9.99

Measurement, transmission and accessories

• CAP8533: Vibration tachometer, RPM
• CAP8520: Battery tachometer, RPM
• CAP1330: IR remote temperature probe
• PRO0303: Remote support for gas analyzer probe

Approvals and certifications

• MID (2014/32/EU)
• OIML R 99
• ISO 3930
• BAR97 (bench)

Communication protocols

• ASA Net
• GIEG Lan
• OTC Lan

Applications

• PTI inspection centers
• Workshops and car repair centers
• Automotive industries

Characteristics / technical specifications

• Model: CAP3201 G
• Brand: Capelec
• Product type: Stand-alone exhaust gas analyser
• Gases measured: Hydrocarbon (HC), Oxygen (O2), Carbon monoxide (CO), Carbon dioxide (CO2)
• Operation temperature: -10°C to 55°C
• Preheating time: < 9 minutes at 0°C (1 minute minimum)
• Response time: < 5 seconds
• Atmospheric pressure range: 750 mBar to 1150 mBar
• Lambda rate: 0 to 9.99
• Display: LCD screen
• Printer: Built-in thermal printer
• Mobility: Mobile trolley
• RPM measurement: Inductive and piezo sensor options (CAP8533 / CAP8520)
• Optional functions: NOx analysis, opacity cell (for combined petrol and diesel analysis)
• Approvals: MID (2014/32/EU), OIML R99, ISO 3930, BAR97 (bench)
• Communication: ASA Net, GIEG Lan, OTC Lan
• Typical uses: Workshop diagnostics, regulatory PTI testing, manufacturers and industrial checks
• Datasheet: CAP3201 Emissions testing unit data sheet available
