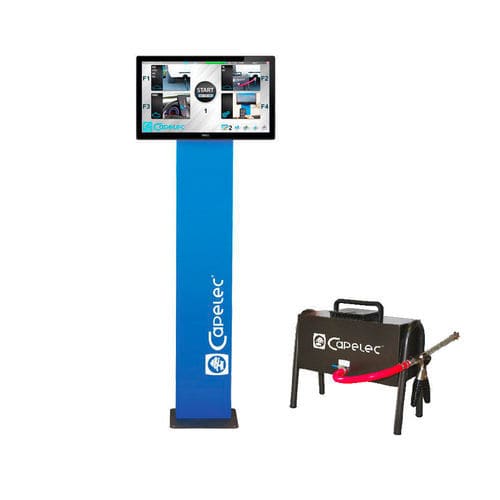

Automatic opaque smoke meter CAP3600 O

Overview
This PC-based smoke meter CAP3600 O measures exhaust smoke emissions from diesel combustion engines. The system features a secure connection and an innovative user interface (23-27'' touchscreen, remote control, remote display) within a modular totem design that facilitates updates and technological upgrades. It can be upgraded with a Capelec gas analyser module to provide combined petrol and diesel emissions analysis. Intended for workshops, light and heavy vehicle PTI centers and industrial applications.

Key features

• PC-based interface with 23-27'' touchscreen and optional remote display
• Wireless connectivity and encrypted transmission (OTClan)
• Remote control and remote assistance
• Compact, ergonomic modular totem
• Dual operation modes: inspection and repair/diagnostic
• Modular architecture enabling optional gas analyser integration
• Automatic zero and calibration

Measurement & transmission modules

• CAP8533: Vibration tachometer / RPM module
• CAP8520: Battery tachometer / RPM module
• CAP1330: Non-intrusive IR temperature probe (Bluetooth)
• CAP1220/1221: RS232 to Bluetooth converter (receiver/transmitter)

Accessories (examples)

• PRO02686: Screen protective cover
• PRO03030: Remote support for gas analyser probe
• PRO03029: Keyboard holder for totem
• PRO03017: 4-wheel mobile base for totem
• PRO03496: 3-wheel cart for CAP3030 cell

Smoke meter connection / sampling

• CAP3030ZEZ1/ZE2: Smoke collector for light and heavy vehicles
• PRO3030ZE50: Direct sampling extension

Approvals & certifications
ISO 11614; NFR 10025-2016

Applications

• Periodical technical inspection centers (PTI) for light and heavy vehicles
• Automotive workshops, repair garages and service centers
• Vehicle manufacturers and industrial engine test/control facilities

Technical specifications

• Model: CAP3600 O
• Type: PC-based opacimeter (smoke meter) for diesel engines
• Interface: 23-27'' touchscreen, PC interface, optional remote display, remote control
• Connectivity: Wireless, encrypted transmission (OTClan), remote assistance
• Design: Compact ergonomic totem, modular design (upgradable with gas analyser)
• Measurement modules supported: CAP8533, CAP8520, CAP1330, CAP1220/1221
• Auto reset: Yes
• Calibration: Automatic
• Power supply: 230 V
• Smoke sampling options: CAP3030ZEZ1/ZE2 (smoke collector), PRO3030ZE50 (direct sampling extension)
• Accessories: PRO02686, PRO03030, PRO03029, PRO03017, PRO03496
• Approvals: ISO 11614; NFR 10025-2016
• Intended use: Workshops, LV and HGV PTI centers, periodical inspections, industrial engine smoke control
• Measurement range: XXXXX (value not specified)
