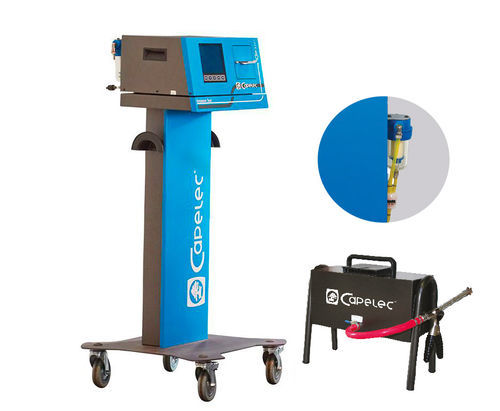

Stationary combustion analyzer CAP3201 GO

calculated CO2O2CO

Overview
The combined multi-gas analyzer and smoke meter stand-alone unit ensures control of exhaust gas emissions for cars, motorcycles, trucks and light commercial vehicles. Dual-mode operation (multi-gas analysis and vehicle inspection) enables pre-inspection testing and anti-pollution checks.

Main features

• Suitable for diesel and gasoline engines
• Multi-fuel coverage: smoke measurement for diesel; multi-gas analysis for gasoline, LPG, CNG
• LCD screen / Touch-screen display
• Built-in thermal printer
• RPM measurement: inductive and piezo sensors (vibration and battery tachometers supported)
• Mobile trolley for workshop use
• Optional NOx module available

Measured gases and functions

• Hydrocarbons (HC)
• Oxygen (O2)
• Carbon monoxide (CO)
• Carbon dioxide (CO2)
• Opacimeter function for diesel smoke measurement

Technical data (highlights)

• Dual mode: Diagnostic and Vehicle inspection (PTI)
• Preheating: < 9 minutes at 0°C (1 minute minimum) for optimal performance
• Operating temperature: -10°C to 55°C
• Response time: < 5 seconds
• Atmospheric pressure range: 750 mBar to 1 150 mBar
• Lambda measurement range: 0 to 9.99
• Opacimeter features: auto-zero, automatic calibration; power supply 230 V

Measurement, transmission and accessories

• RPM and transmission modules: CAP8533 (vibration/battery tachometer, RPM), CAP8520 (battery tachometer, RPM)
• Temperature probe option: CAP1330 infrared remote probe
• Connectivity: CAP1220/CAP1221 RS232 to Bluetooth converters
• Accessories examples: PRO0303 remote support for gas probe; PRO03496 3-wheel cell trolley
• Smoke meter connections: CAP3030ZE smoke collector; CAP3030ZE50 direct sampling extension

Approvals and standards

• Gas analyser: MID (2014/32/EU), OIML R99, ISO 3930, BAR97 (bench)
• Opacimeter: ISO 11614, CEM
• Communication protocols: ASANet, GIEG Lan, OTC Lan

Applications and versions

• Used in workshops and vehicle inspection (PTI) centres
• Suitable for inspection, repair shops, garages, manufacturers and industrial users
• Available versions: PTI inspection platform, workshop platform, industrial platform

Technical specifications

• Model: CAP3201 GO
• Brand: Capelec
• Unit type: Stand-alone combined emission tester (multi-gas analyzer + opacimeter)
• Measured gases: HC, O2, CO, CO2
• Diesel measurement: opacimeter (smoke)
• Fuel coverage: Gasoline, Diesel, LPG, CNG
• Display: LCD / Touch-screen
• Printer: Built-in thermal printer
• RPM sensors supported: inductive and piezo; compatible modules CAP8533, CAP8520
• Temperature probe option: CAP1330 (IR remote)
• Connectivity converters: CAP1220 / CAP1221 RS232 to Bluetooth
• Preheating time: < 9 minutes at 0°C (1 minute minimum)
• Operating temperature: -10°C to 55°C
• Response time: < 5 seconds
• Atmospheric pressure range: 750 to 1 150 mBar
• Lambda range: 0 to 9.99
• Opacimeter power supply: 230 V
• Automatic functions: opacimeter auto-zero and automatic calibration
• Typical accessories: PRO0303, PRO03496, CAP3030ZE, CAP3030ZE50
• Approvals: MID, OIML R99, ISO 3930, BAR97 (gas analyser); ISO 11614, CEM (opacimeter)
