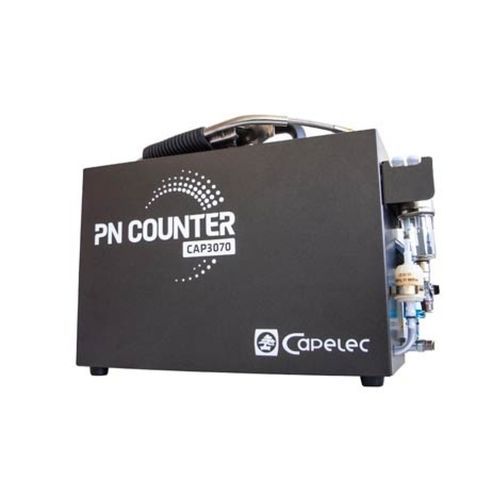

Gas particle counter CAP3070

electronic

Overview
The CAP3070 particle number (PN) counter is developed for roadworthiness inspections and workshop testing. Based on Extended Diffusion Charging (ExtDC) and a patented straight-through cell design, it delivers fast, repeatable PN measurements with minimal maintenance. The unit operates standalone or integrated with gas/opacity modules and is controlled from Windows or Android terminals (PC, tablet, smartphone).

Certifications & Approvals
NMI / METAS / PTB approved; additional national approvals in progress.

Key benefits

• Fast, guided measurement procedure (typical test ≤ 30 s)
• Low-maintenance anti-soot design with no consumable fluids
• Wide dynamic range and high repeatability
• Position-independent and vibration-insensitive measurement
• No compressed air or dilution required
• Clear PASS/FAIL result and printable test report
• Heated probe options: short (1 m) or long (4 m)

Technology & Measurement Principle
ExtDC (Extended Diffusion Charging) electrostatically charges particles entering the sensor and measures the resulting current when charged particles exit. Advantages include absence of consumable liquids, immunity to orientation and vibrations, no dilution and no compressed air requirement.

Operational advantages
The CAP3070 performs PN measurement at idle (no free acceleration needed), reducing test time, noise and engine stress. The straight-through cell limits contamination and extends uptime. The device provides a direct PASS/FAIL indication on filter condition (good, cracked, tampered) and can be controlled from computer, tablet or smartphone running Windows or Android.

PN Counter — Performance

• Measuring range: 5,000 – 5,000,000 particles/cm3
• Display resolution: 1,000 particles/cm3
• Response time: < 10 s (T0 → T95)
• Power supply: 230 V / 110 V

Options

• CAP4350: EOBD / OBFCM adapter
• CAP8533 / CAP8535: RPM tachometer options

Additional information
Anti-soot design and Venturi-assisted sampling minimize maintenance and consumables, enabling continuous operation in inspection lanes and workshops. The CAP3070 complies with European PN measurement requirements and delivers an unambiguous PASS/FAIL result.

Technical specifications

• Model: CAP3070
• Measurement technology: Extended Diffusion Charging (ExtDC)
• Measurement type: Particle Number (PN) for vehicle exhaust
• Measuring range: 5,000 – 5,000,000 particles/cm3
• Resolution: 1,000 particles/cm3
• Response time: < 10 s (T0 → T95)
• Power supply: 230 V / 110 V
• Heated probe options: short 1 m, long 4 m
• No compressed air required
• Position-independent measurement
• Insensitive to vibrations and shocks
• Interface / control: Windows and Android terminals (PC, tablet, smartphone)
• Result format: Clear PASS/FAIL and printable report
• Certifications: NMI / METAS / PTB approved
• Options: CAP4350 (EOBD/OBFCM adapter), CAP8533/CAP8535 (RPM)
