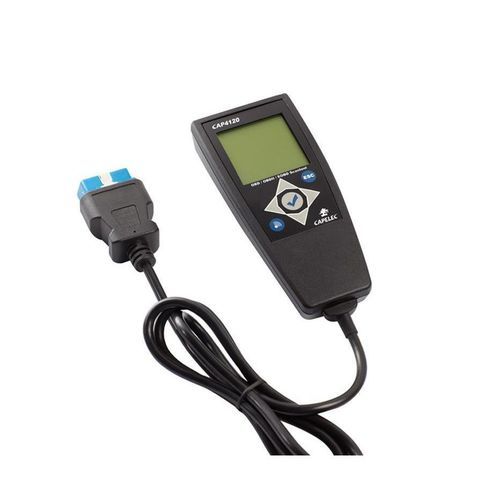

Bluetooth diagnostic tool CAP41 series

fault code readingengineECU

Product overview
CAP4120 and CAP4150 are stand‑alone EOBD diagnostic scanners that read and store ECU fault codes and display live parameters by connecting to vehicle on‑board ECUs. CAP4120 is designed for light vehicles; CAP4150 supports both light and heavy goods vehicles.

Key features

• Standalone EOBD/OBD-II scanner
• Built-in LCD screen for local viewing
• Access to ECU live data (rpm, vehicle speed, oil temperature, etc.)
• Fast diagnosis time (typically under 1 minute)
• Read and store DTCs (stored fault codes)
• Bluetooth data transmission
• Supports OTC LAN communication protocol

Vehicle compatibility

• Gasoline and diesel engines
• CAP4120: light vehicles (cars)
• CAP4150: light vehicles and heavy goods vehicles (trucks)

Technical data (summary)

• Power supply: 12 / 24 V DC
• Supported protocols:

• ISO 9141-2 (5‑Baud)
• ISO 9141-2 (Fast)
• ISO/DIS 14230-4 (Keyword 2000) (5‑Baud)
• ISO/DIS 14230-4 (Keyword 2000) (Fast)
• ISO/DIS 11519-4 (SAE J1850) PWM
• ISO/DIS 11519-4 (SAE J1850) VPW
• ISO/DIS 15765-4 (CAN)
• SAE J1939 (WWH)

Options

• CAP1000-IMPRS — Thermal printer (wired)
• CAP1000-IMPBT — Thermal printer (wireless)
• PRO02386 — Protective cover
• CAP4120-ADI — Printer connection adapter

Operating

• CAP4120 — Reads ECU fault codes and live parameters on light vehicles
• CAP4150 — Reads ECU fault codes and live parameters on light and heavy vehicles

Standards / Certifications

• CDC6A
• PV N° 06/09215/B
• PV N° 06/09216/B
• PV N° 07/03451/B
• NFR10025

Characteristics / Technical specifications

• Models: CAP4120 (light vehicles), CAP4150 (light and heavy goods vehicles)
• Power supply: 12 / 24 V DC
• Display: integrated LCD screen
• Connectivity: Bluetooth transmission and OTC LAN protocol
• Functions: read and store DTCs, access ECU live data (rpm, speed, oil temperature, etc.)
• Supported protocols: ISO 9141-2 (5‑Baud & Fast), ISO/DIS 14230-4 (Keyword 2000 5‑Baud & Fast), ISO/DIS 11519-4 (SAE J1850 PWM & VPW), ISO/DIS 15765-4 (CAN), SAE J1939 (WWH)
• Available accessories: wired/wireless thermal printers, protective cover, printer connection adapter
