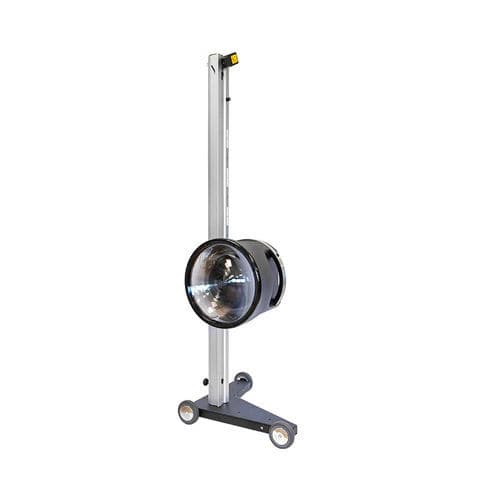

Headlight aimer CAP2700

Overview
The CAP2700 headlight tester is designed for vehicle inspection centres, repair workshops and manufacturers. It combines an extra-large lens, Smart Control ergonomics and the S2700 software interface to measure, validate and adjust modern headlight systems.

Key features

• Extra-large lens compatible with Halogen, Xenon, Bi‑Xenon, LED, Bi‑LED and Laser headlights
• Smart Control handle with integrated validation button for one‑hand operation
• S2700 software interface with remote PC display and input
• Touchscreen and digital measurement with inclinometer compensation
• Extended connectivity: WiFi (a/b/g/n/ac) and RJ45
• Quick maintenance access to electronic modules; long‑life lithium battery (use while charging)

Detailed description
The CAP2700's 2.5x extra-large lens provides a short focal length in a compact housing, enabling evaluation of extra-wide optics, adaptive and smart headlights. Measurement is fully digital and compensated in real time by the inclinometer for precise results.

The Smart Control system centralises validation on the handle: the operator holds the unit with one hand, positions it and validates operations quickly. The S2700 interface improves comfort and productivity with an intelligent centring assistant and remote PC support.

Device design allows rapid maintenance and easy access to calibration and electronic modules, facilitating on-site servicing and remote assistance.

Measurement modes

• Free measurement for workshop checks
• Procedure mode for technical inspection or pre‑inspection
• Factory‑type adjustment mode for matrix headlights in workshops

Options

• Rails for light vehicles (LV) or heavy vehicles (HGV)
• Wheels for rails
• Eccentric wheels
• Brake for wheel

Applications / Operating

• Roadworthiness inspections: headlight conformity check; low beam, high beam and fog lights testing
• Workshops and garages: optical geometry measurement, bulb intensity check, adjustment of low beam/high beam/fog lights
• Manufacturers & industry: headlight adjustment checks and geometry control in production or workshop

Communication protocols & approvals

• ASA Net
• GIEG Lan
• OTC Lan
• Approval: UTAC

Technical specifications

• Settings: Low beam, High beam, Fog lights
• Measurements: Cut‑off; Side deviation; Yaw angle; Roll angle; Light intensity
• Connectivity: WiFi a/b/g/n/ac; RJ45
• Weight: 25 kg
• Dimensions: 640 x 720 x 1890 mm
• Battery: Long‑life lithium battery
• Charging time: 4 hours (use during charging possible)
• Cut‑off tolerance: -6 / +6 % (±0.2%)
• Side deviation: -10 / +10 %
• Yaw & roll angle: -90 / +90°
• Light intensity: Lux 0–200 lx; 0–125 000 kcd
