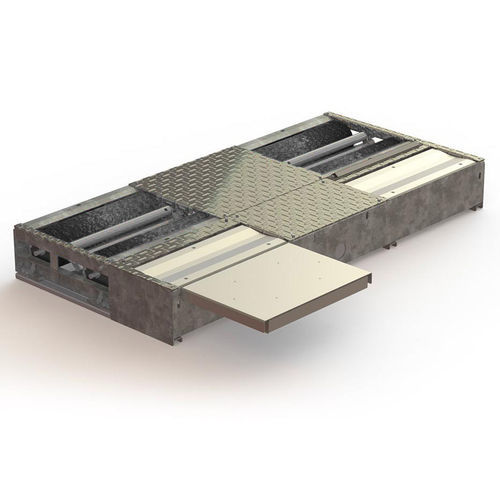

Car brake tester CAP9010

roller

Overview
The CAP9010 is a 3-function inspection bench for light vehicles integrating a roller brake tester, a suspension tester and a side slip tester. Designed for workshop and technical inspection use, the bench features a galvanized steel frame and epoxy-coated aluminium rollers for corrosion resistance and high grip. The suspension module uses a quiet, durable variator and EUSAMA measurement technology. The bench is delivered with a remote electrical cabinet and a CPU board developed by CAPELEC. PTI software (S9010NC) guides the operator; remote control and telemaintenance are available via wireless touchscreen and remote control.

Main features

• Braking, suspension and side slip testing in a single multifunction bench
• Compact design adaptable to most civil works and workshop pits
• Operator station: totem with PC, touchscreen and wireless remote
• PTI testing procedure S9010NC
• Galvanized steel frame for aggressive environments (water, sand, salt)
• Epoxy-coated aluminium rollers: light, non-corroding, high grip
• Remote maintenance and assistance capability
• Optional: progressive start, roller stop, 4WD mode / reverse rotation

Operator interface and accessories

• Totem PC interface with 22" touchscreen (standard); optional 27" touchscreen
• Wireless Bluetooth pedometer (option CAP9010-PED)
• Wireless touchscreen for remote operation and remote assistance
• Remote electrical cabinet for easy access and maintenance

Technical data
Brake tester
Dimensions: 232 x 69 x 28 cm
Frame: galvanized steel
Maximum axle load: 4 tons
Motors: 3.7 kW
Roller speed: 5 km/h
Measuring range: 0–750 daN
Path: 80–220 cm
Rollers: aluminium with epoxy coating, high grip
Pedometer: wireless (Bluetooth)
Power supply: 230/400V, 50Hz

Suspension tester
Dimensions: 232 x 43 x 28 cm
Frame: galvanized steel
Frequency: 0–25 Hz
Maximum axle load: 4 tons
Motors: 3 kW
Test method: EUSAMA (three strain gauges per plate)
Path: 80–220 cm
Power supply: 230/400V, 50Hz

Side slip tester
Dimensions: 73 x 52 x 7 cm
Frame: galvanized steel
Measuring range: ±20 m/km
Maximum axle load: 4 tons

Software & standards
Software: PTI procedure S9010NC guiding the test process
Certifications: CDC 4A
Communication protocols: GIEG LAN, OTC LAN

Options & compatible accessories

• CAP9000-RF free rollers set
• CAP9000-RFE recessed free rollers set with epoxy protective cover
• CAP9000-TE extended path kit
• PRO03017 4-wheels mobile base
• CAP9010-SST progressive start
• CAP9010-27N 27" screen
• CAP9010-BLO roller stop
• CAP9500EX decelerometer
• CAP9010-PED Bluetooth pedometer
• CAP9010-FWD 4WD mode
• Civil engineering adapters PRO03175 (2350 x 360) and PRO03176 (2350 x 180)

Technical specifications

• Model / commercial name: CAP9010
• Type: 3-function roller brake tester for light vehicles (brake, suspension, side slip)
• Brake tester dimensions: 232 x 69 x 28 cm
• Suspension tester dimensions: 232 x 43 x 28 cm
• Side slip plate dimensions: 73 x 52 x 7 cm
• Frame material: galvanized steel
• Rollers: aluminium with epoxy coating
• Maximum axle load (all modules): 4 tons
• Brake tester motor power: 3.7 kW
• Suspension tester motor power: 3 kW
• Roller speed: 5 km/h
• Brake measuring range: 0–750 daN
• Suspension frequency range: 0–25 Hz
• Measurement path (brake & suspension): 80–220 cm
• Side slip measuring range: ±20 m/km
• Power supply: 230/400V, 50Hz
• Interface: ergonomic totem, 22" touchscreen (standard)
• Software: PTI procedure S9010NC
• Remote maintenance / remote assistance: available
• Options: progressive start, roller stop, 4WD mode, Bluetooth pedometer, roller/path kits, civil adapters
• Certifications: CDC 4A
• Communication protocols: GIEG LAN, OTC LAN
