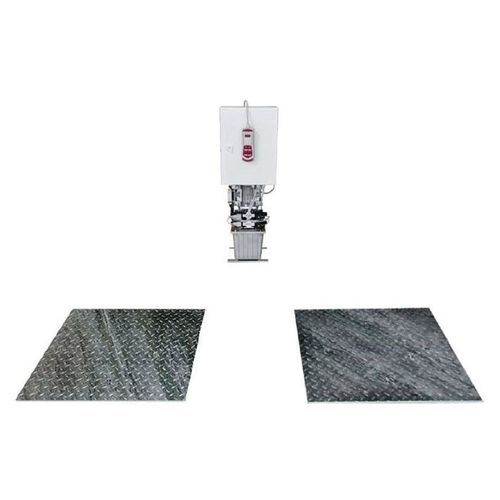

Visual inspection machine CAP9200-LEH

for bearingsfor the automotive industry

Overview
Capelec CAP9200-LEH hydraulic play detector for light vehicles is designed to inspect and verify play in ground connections: steering, kingpins, bearings, joints and various attachments. It enables detection of oil or fluid leaks and faults in bellows or driveshafts without lifting the vehicle. Visual checks are performed by applying controlled movements that reproduce the forces experienced on the road.

Key features

• Fast and efficient inspection procedure
• Single-operator use
• Five selectable movement modes
• No vehicle lifting required
• Wireless remote control

Applications / Operation
Designed for technical inspection centers and repair workshops: detects play and potential faults in steering and suspension linkages, and helps identify leaks or driveline problems during diagnostics.

Technical specifications

• Maximum axle load: 3 t
• Maximum working pressure: 150 bar
• Maximum horizontal force per plate: 30 kN
• Movement speed: 60 mm/s
• Operation mode: electro-hydraulic
