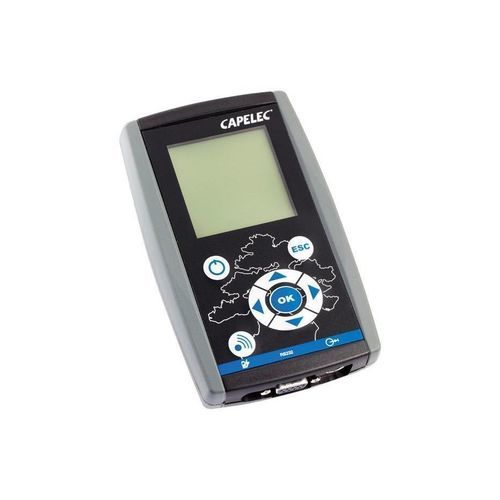

Motorcycle brake tester CAP9500

for tractorsfor forklift trucksfor trucks

Product overview
The CAP9500 handheld decelerometer is a portable measuring device for assessing braking efficiency across all types of rolling vehicles (cars, 4x4, classic cars, tractors, motorcycles, quads, construction machinery, industrial vehicles, forklifts, trucks, trains, trams). It is designed for field and workshop use and is supplied with a protective transport case and windscreen mounting.

Key points

• Wireless handheld brake tester
• Compatible with all vehicle types
• Dual mode: verification and periodic technical inspection
• Automatic measurement using a 3D sensor
• LCD display with PC reporting capabilities
• Compact and lightweight (300 g)
• Automatic data backup
• Windscreen attachment using high-vacuum suction pad
• Protective transport case included

Operating / Uses

• Vehicle inspection centres and workshops: portable tool for brake-system checks and pre-inspection measurements
• Manufacturers and industrial users: on-site measurement of braking efficiency for development and quality control

Options

• CAP9500FR-LP: pedometer
• PRO02319: motorcycle suction pad
• CAP1000-IMPRS: wireless Bluetooth printer
• CAP1000-IMPBT: thermal (wired) printer

Standards

• ISO/DTR13487F
• SR/V/F1-1
• SR/V/P01

Technical characteristics / specifications

• Weight: 300 g
• Dimensions: 153 x 97 x 30 mm
• Display: LCD
• Power supply: Lithium battery, rechargeable via AC/12–24 V adapter or vehicle cigarette lighter socket
• Communication: Wired RS232 and wireless Bluetooth
• Measuring range: 0 to 20 m/s²
• Sensor: 3D sensor for automatic measurement
