Linear speed sensor CAP9610mechanical
Add to favorites
Compare this product
Characteristics
- Type of movement
- linear
- Technology
- mechanical
Description
Product overview

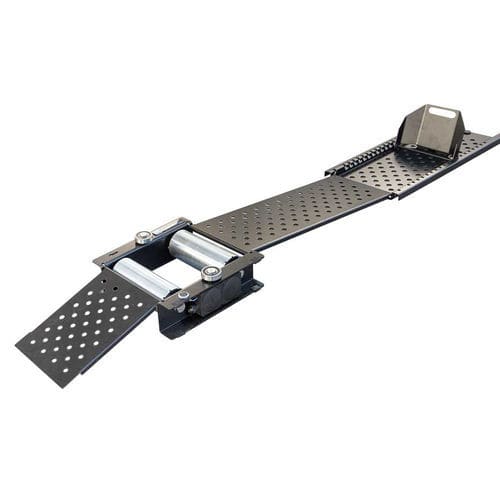

The CAP9610 portable speed measurement system comprises a roller bench and two folding ramps stored in a carrying case. The interface is simple and the measurement procedure is completed in three steps within seconds. Start-up is performed from the chassis control.
Application
Periodic technical inspection and roadside speed checks for Category L1e vehicles (scooters, e-scooters). Conforming CDC10.
Key features
Interfaces
Ease of use and ergonomics
Minimal space requirement. Chassis with carrying handle; ramps store vertically. Installation and measurement in seconds via a three-step procedure. Programmable automatic shutdown after inactivity.
Autonomy
Continuous operation greater than 40 hours and more than 500 measurements per charge (5-minute test basis). Charging time less than 5 hours; operation possible during charging.
Safety
Exit ramp fitted with an adjustable safety (locking) shoe. Chassis equipped with recentering rollers and ramps with anti-slip perforations.
Versions
Options
Technical specifications
The CAP9610 portable speed measurement system comprises a roller bench and two folding ramps stored in a carrying case. The interface is simple and the measurement procedure is completed in three steps within seconds. Start-up is performed from the chassis control.
Application
Periodic technical inspection and roadside speed checks for Category L1e vehicles (scooters, e-scooters). Conforming CDC10.
Key features
- Bluetooth class 1 wireless communication between bench and interface
- Quick disassembly into two compact components for transport
- Continuous autonomy > 40 hours; >500 measurements (based on 5-minute test)
- Unbraked chassis dynamometer with anti-corrosion treatment
- Can be used while charging; charging time < 5 hours
Interfaces
- Autonomous mobile operation with tablet
- Connection to CAP3600 or CAP5700FR-T systems
Ease of use and ergonomics
Minimal space requirement. Chassis with carrying handle; ramps store vertically. Installation and measurement in seconds via a three-step procedure. Programmable automatic shutdown after inactivity.
Autonomy
Continuous operation greater than 40 hours and more than 500 measurements per charge (5-minute test basis). Charging time less than 5 hours; operation possible during charging.
Safety
Exit ramp fitted with an adjustable safety (locking) shoe. Chassis equipped with recentering rollers and ramps with anti-slip perforations.
Versions
- Integration with existing CAP3600: Ref. CAP9610FR-KAT — CAP9610 device and S9610 update for CAP3600 / CAP5700FR-T
- Mobile standalone version: Ref. CAP9610FR-T — CAP9610 device, S9610 software and rugged tablet
Options
- Footrests: length 1.40 m
- Podium: 4 modules
Technical specifications
- Measurement range: 0 to 80 km/h
- Accuracy: ±1% or ±0.5 km/h
- Chassis load capacity: 250 kg
- Roller diameter: 100 mm
- Useful roller width: 250 mm
- Ramps: anti-slip perforations
- Safety: adjustable locking shoe
- Connection: Bluetooth class 1 wireless
- Chassis dimensions: 400 x 401 x 141 mm
- Ramps set dimensions: 827 x 342 x 99 mm
- Continuous autonomy: > 40 hours
- Charging time: < 5 hours
- Use during charging: yes
- Automatic shutdown after measurement: programmable
