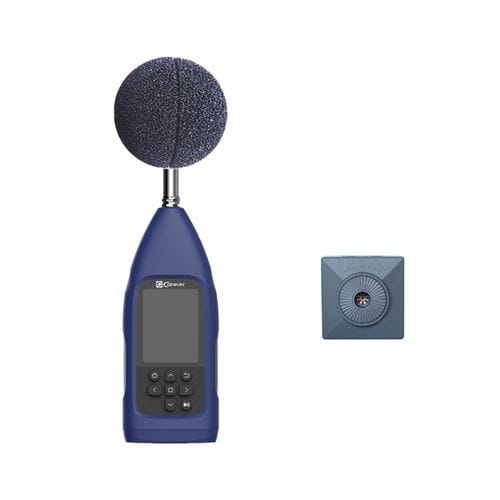

Basic sound level meter CAP5700EX-SC

class 2USBdigital

Overview
Designed to monitor L-category vehicles (motorcycles, scooters, mopeds, quads). Stand-alone or connected solution with LCD display and Bluetooth. Class 2 sonometer.

Main features

• Class 2 sonometer
• LCD display
• Bluetooth connection
• Class 2 calibrator included
• USB connectivity

Sonometer

• Microphone: ½ inch with 5 m cable
• Measurement range: 31 dB - 133 dB
• Internal noise: <20 dB
• Frequency range: 20 Hz - 12.5 kHz
• Connection: USB / Bluetooth
• Sound reference: 94 dB @1 kHz

Calibrator

• Acoustic pressure: 94 dB
• Sound pressure error: ±0.3 dB (20°C ± 5°C); ±0.5 dB (-10°C to +50°C)
• Harmonic distortion: ≤1.0 %
• Overall distortion: ≤2.5 %

Power & dimensions

• Power supply / Autonomy: 2x AA / LR6 or battery — approx. 7 hours
• Dimensions: 70 mm × 70 mm × 35.2 mm

Technical specifications

• Model: CAP5700EX-SC
• Application: Control of L-category vehicles (motorcycles, scooters, mopeds, quads)
• Class: Class 2 sonometer
• Microphone: ½ inch with 5 m cable
• Measurement range: 31 dB - 133 dB
• Internal noise: <20 dB
• Frequency range: 20 Hz - 12.5 kHz
• Connections: USB, Bluetooth
• Sound reference: 94 dB @1 kHz
• Calibrator acoustic pressure: 94 dB
• Sound pressure error: ±0.3 dB (20°C ± 5°C); ±0.5 dB (-10°C to +50°C)
• Harmonic distortion: ≤1.0 %
• Overall distortion: ≤2.5 %
• Power supply: 2x AA / LR6 or battery
• Autonomy: approx. 7 hours
• Dimensions: 70 × 70 × 35.2 mm
