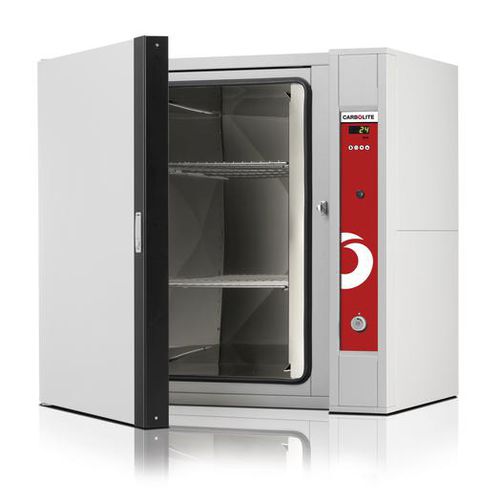

Curing oven PF series
chamberelectriclaboratory

curing oven
curing oven
curing oven
curing oven
Add to favorites
Compare this product


Characteristics

Function
curing
Configuration
chamber
Heat source
electric
Other characteristics
laboratory
Capacity

Min.: 28 l (7.4 gal)

Max.: 910 l (240.4 gal)

Maximum temperature

Min.: 30 °C (86 °F)

Max.: 300 °C (572 °F)

Description

Laboratory ovens of the Peak series 300°C are available as both PF fan convection and PN natural convection models. Fan convection provides greater temperature uniformity and faster recovery rates than natural convection. Standard features 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures 28 to 910 litre chamber volumes Equipped with the R38 digital PID temperature controller Fan convection for rapid heating & recovery & excellent uniformity Chemically resistant stainless steel liner Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves) Lever latch door & airtight silicone seal Compliant with safety standard BS EN 61010-2-010:2003 Options (specify these at time of order) Over-temperature protection (recommended to protect valuable contents & for unattended operation) A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications Access port for independent thermocouple Accessory shelves & runners Heavy duty reinforced base and shelves Cable entry ports Variable speed fan control Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option) Viewing window (not compatible with stoving & curing option) Interior light (not compatible with stoving & curing option) Air exhaust fan Moisture extraction option (comprising sealed seams and air exhaust fan) Stacking frame to enable units to be stacked one upon another Lockable door Door switch to isolate elements and fan Fixed or castor mounted floor stands

Catalogs

No catalogs are available for this product.

See all of Carbolite Gero‘s catalogs
