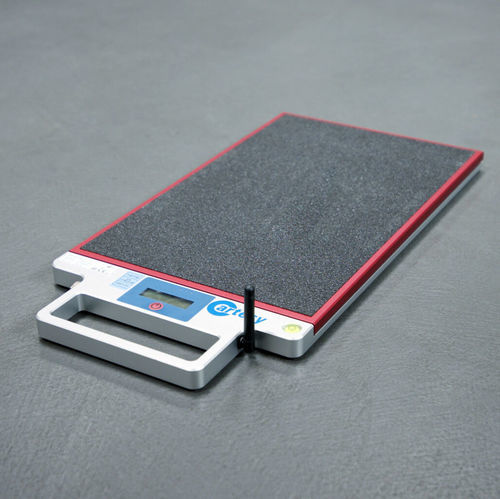

Metal wheel scale IFX-10/20/30-LCD-F

for vehiclesportabledigital

Product overview
Mobile vehicle wheel-load scales for monitoring wheel and axle loads. The IFX series is suitable for cars, campers, caravans and trailers. Models include a built-in backlit LCD and radio data transmission. Three measuring ranges cover different vehicle categories.

Key features

• Measuring ranges (wheel load): 1,000 kg / 2,000 kg / 3,000 kg
• Division: 1 kg
• Approx. weight per scale: 6 kg
• Battery-operated (portable)
• Serial interface: RS-485
• Housing: aluminum alloy
• Built-in LCD with backlight
• Radio data transmission: 433 MHz
• Simultaneous radio operation: up to 10 scales
• Compatibility with inno!weight® PC software (requires radio receiver SUB-1020)
• Compatibility with inno!weight® PC software & apps (requires radio receiver SUB-2020)

Measurements
External dimensions (L × W × H): 500 × 250 × 21 mm
Weighing area (L × W): 400 × 250 mm

Fields of application

• Check wheel and axle loads for cars, campers and caravans to prevent overload
• Weight control during loading and unloading
• Axle load / wheel load measurement
• Determine axle weight, wheel load and total vehicle weight
• Corner balancing / cross weight
• Weight management and documentation

More information
All IFX wheel load scales are delivered adjusted and tested with a test certificate. Each unit can be ordered with optional factory calibration or ISO 17025 calibration. Optional mobile handheld terminals and radio link accessories are available to connect scales to PCs, iOS or Android devices for live measurement, center of gravity determination, axle alignment checks and saving weight protocols.

Characteristics / technical specifications

• Model family: IFX series (IFX-10, IFX-20, IFX-30)
• Measuring ranges (wheel load): 1,000 kg (IFX-10), 2,000 kg (IFX-20), 3,000 kg (IFX-30)
• Approx. total vehicle coverage: up to 4,000 kg (IFX-10), up to 8,000 kg (IFX-20), up to 12,000 kg (IFX-30)
• Division / resolution: 1 kg
• Approx. weight per scale: 6 kg
• Power supply: battery-operated (portable)
• Display: built-in backlit LCD
• Radio communication: 433 MHz
• Max. simultaneous scales via radio: up to 10
• Interfaces: RS-485 (serial)
• Material: aluminum alloy housing
• Dimensions (L × W × H): 500 × 250 × 21 mm
• Weighing area (L × W): 400 × 250 mm
• Software compatibility: inno!weight® PC software and apps (requires SUB-1020 or SUB-2020 radio receiver)
• Delivered with: test certificate; optional factory or ISO 17025 calibration available
