Car brake tester PBT-1024 PRIMO NG

Description:
Plate brake tester for brake efficiency testing during main inspections in accordance with German § 29 StVZO. Compact above-ground design for passenger cars, trailers and special applications.

Main features:

• Digital brake force sensors
• Only 25 mm overall height
• 3.5 t test load / 4.0 t crossing capacity
• Contact-free radar unit for live speed measurement (patented)
• Maintenance-free, fully galvanized mechanics
• Wear-resistant high-grip surface coating
• ASA-Livestream Interface (V1.2)
• Bright 12-digit digital display (VESA mount)
• DIN EN ISO 17025 calibration
• Easy and fast installation, no foundation required
• Approved according to brake tester guideline 2021 (2023-10-DEK231031)

Advantages:

• Drive-over design—plates can be crossed directly by vehicles
• Suitable for trailer testing
• Compatible with all-wheel-drive vehicles
• Electric parking brake testable
• Suitable for tuning and racing (lowered vehicles)
• Ideal for rented or temporary workshops
• Visualize, save, print and process test data via standardized interface

Scope of delivery:

• 2 × brake plates
• 4 × drive-on/-off ramps
• 1 × radar unit
• 1 × digital display with power supply
• 1 × wall bracket for display
• 1 × ASA-Livestream V1.2
• 2 × cable protection covers
• 1 × wiring kit
• 1 × assembly kit
• 1 × product information

Product details:
The PBT-1024 PRIMO NG features an overall height of just 25 mm and is designed for passenger cars of all types, including lowered racing and motorsport vehicles. Caravans, motorhomes, vans and trailers can also be tested. The patented, wear-resistant high-grip surface coating delivers high braking values and dynamic, road-like braking behavior. Above-ground installation allows flexible placement without foundation work; the tester can be driven over crosswise. The system uses a digital, tamper-proof data bus connecting intelligent sensors and the digital display. The bright 12-digit display (VESA mount) shows brake values, brake force difference and live measured test speed. The patented radar measuring system provides real speed measurement during the brake test. All measured values are available via the standardized ASA-Livestream data interface for visualization and processing. Full compatibility with NPC products enables saving, printing and visualization of test data.

Technical specifications:

• Model: PBT-1024 PRIMO NG

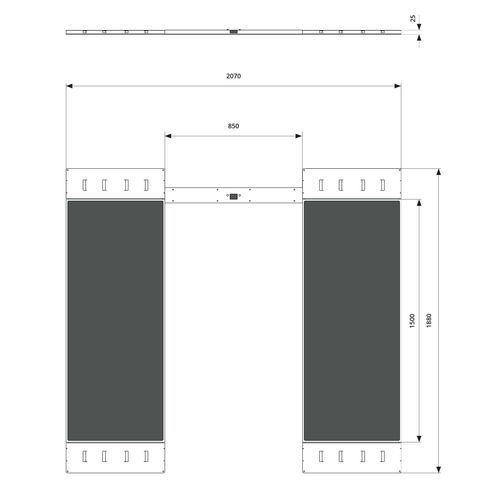

• Overall height: 25 mm
• Test load: 3.5 t
• Crossing capacity: 4.0 t
• Brake force sensing: digital brake force sensors
• Speed measurement: contact-free radar unit (patented)
• Surface: wear-resistant high-grip coating
• Mechanics: fully galvanized, maintenance-free
• Interface: ASA-Livestream V1.2
• Display: bright 12-digit digital display (VESA mount)
• Calibration: DIN EN ISO 17025
• Approval: brake tester guideline 2021 (2023-10-DEK231031)
• Installation: above-ground, no foundation required, can be crossed over
• Vehicle compatibility: passenger cars, lowered/racing vehicles, caravans, motorhomes, vans, trailers, all-wheel-drive vehicles
• Electric parking brake: testable
• Included: brake plates, ramps, radar, display, brackets, cable protection, wiring and assembly kits, product information
