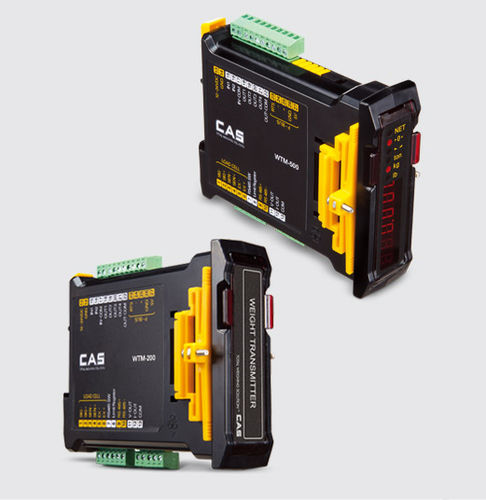

Analog output weight transmitter WTM series

EthernetDIN rail mountfast

Weight Transmitter WTM sériés is a fast and accurate weighing transmitter via its high-performance A/D converter. The transmitter is DIN rail and Flush mountable in a weighing panel or a cabinet, and provides various interfaces : RS-485, Analog output, External I/O, Ethernet. Features - High-performance A/D converter - DIN rail and Flush mountable - Various interfaces: RS-485, Analog output, External I/O Options - External I/O, Analog output - Analog output(hArt protocol) - Alibi momory, Ethernet High-performance A/D converter WTM provides high speed A/D conversion with excellent Processing capabilities(5~1,600times/sec), and itshigh resolution display créâtes 1/10,000 for ail input range. DIN rail and Flush mountable Small and slim structure of WTM offers a space saving structure; user's can enhance space utilization of weighing panels or cabinets. Also, it is mountable in DIN rail of back panel and front panel with mounting holders. Various interfaces Easy to be connected w'rth other equipment through various interfaces. -RS-485 (Stream mode, 3Types Command Mode, MODBUS RTU) -External 1/0(2 Inputs / 4 Outputs) ; for WTM-201/ 501 -Analog output(0~20mA, 0~24mA, 4~20mA, 0~5V, 0-10V, ±5V, ±10V) ;for WTM-201 /501 -Analog output (HART protocol, 0~20mA, 0~24mA, 4-20mA, 0-5V, 0-10V, ±5V,±10V; Optional) -EthernetlOptional)
