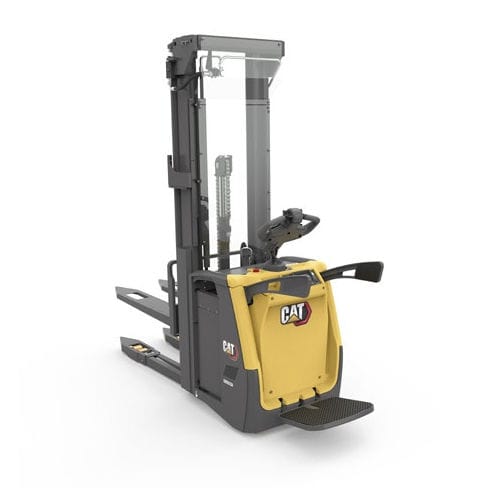

Stacker truck with rider platform NSV/NSF12-16N3
electric24 Vfor warehouse

Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 2
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 3
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 4
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 5
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 6
Stacker truck with rider platform - NSV/NSF12-16N3 - Cat Lift Trucks - electric / 24 V / for warehouse - image - 7
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
with rider platform
Voltage
24 V
Applications
transport, handling, for warehouse, order-picking
Other characteristics
high-speed
Carrying capacity

1,250 kg, 1,600 kg
(2,755.8 lb, 3,527.4 lb)

Free lift

Max.: 2,453 mm
(96.6 in)

Min.: 159 mm
(6.3 in)

Height of mast when lowered

Max.: 2,650 mm
(104.3 in)

Min.: 1,857 mm
(73.1 in)

Height of mast when raised

Max.: 5,939 mm
(233.82 in)

Min.: 3,120 mm
(122.83 in)

Overall width

748 mm, 1,115 mm, 1,315 mm
(29.4 in, 43.9 in, 51.8 in)

Overall length

Max.: 2,585 mm
(101.8 in)

Min.: 2,090 mm
(82.3 in)

Fork width

100 mm, 180 mm
(3.9 in, 7.1 in)

Fork length

1,170 mm
(46.06 in)

Fork thickness

40 mm, 70 mm
(1.57 in, 2.76 in)

Turning circle radius

Max.: 2,231 mm
(87.8 in)

Min.: 1,743 mm
(68.6 in)

Battery capacity

Max.: 400 Ah

Min.: 270 Ah

Motor power traction

2.4 kW
(3.263 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

6 km/h, 8.5 km/h
(3.73 mph, 5.28 mph)

Lifting speed

Max.: 0.34 m/s
(1.115 ft/s)

Min.: 0.15 m/s
(0.492 ft/s)

Weight

Max.: 1,730 kg
(3,814 lb)

Min.: 1,350 kg
(2,976.24 lb)

Description

NSV12-16N3(I)/NSF12-16N3(I)(R)(S) platform stackers – ideal for high-intensity, multiple-role applications, including stacking (up to 5.4 metres), order picking and transport. The fast, refined, stable and safety-assured performance of these versatile platform stackers inspires operator confidence. Combined with remarkably short and narrow dimensions, light weight and easy, precise control, it enables high productivity. At the same time, the trucks reduce your total cost of operation (TCO) with their robust construction and minimal maintenance needs. Fleets of Cat® platform stacker trucks serve a variety of purposes in fast-paced factory and warehouse environments. As well as stacking and retrieving loads in high-bay storage areas, they can be used for supply, feed and order fulfilment purposes. You can choose between folding platform (NSV) models, with optional protective sidebars, and fixed platform (NSF) stackers. Wraparound protective barriers on the fixed platform stacker trucks can be chosen with side (S) or rear (R) entry. Initial lift (I) variants give greater ground clearance, for work on steep ramps and loading docks. They also allow double pallet handling for even higher throughput. Our platform stacker range offers you a choice between three different steering types. At the heart of our platform stackers’ operator-centric design is its highly stable and agile chassis. Connecting the operator to this is the class-leading, ergonomic, emPower tiller head. From the moment he or she sets off on it for the first time, the stacker feels just right. It’s a feeling of balance, responsive control and power that continues consistently through every shift.

VIDEO
