Radio control LRC-S1joystickwith emergency stopIP65
Add to favorites
Compare this product
Characteristics
- Type
- radio
- Control interface
- joystick
- Features
- with emergency stop
- Protection level
- IP65
- Product applications
- industrial, for overhead cranes, for lifting equipment, handling
- Battery type
- rechargeable
- Other characteristics
- compact
- Length
229 mm
(9.02 in)- Width
117 mm
(4.61 in)- Weight
1 kg
(2.2 lb)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Frequency
Max.: 927 MHz
Min.: 335 MHz
Description

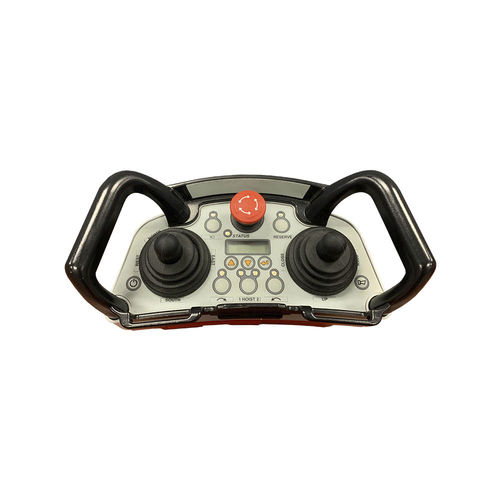

The CattronControl™ LRC-S1 is a compact, bellybox-style radio remote control transmitter with a pre-selected, standard configuration. It can control up to four motions with two multi-axis joysticks. The LRC-S1 can be customized for applications such as crane remote control and the wireless remote control of mobile equipment and machinery in transportation, distribution and warehousing.
-Controls up to four motions with two multi-axis joysticks
-IP65 housing made of impact-resistant, polycarbonate resin
-Tandem and multi-transmitter operation
-System configuration via a secure, wireless RFID Transkey
-Works with CattronControl™ CT24, CCM12 and MMCU4 machine control units
-Approvals and frequencies for worldwide deployment
IP65 housing made of impact-resistant, polycarbonate resin
Drive systems used for the control of digital or analog systems
SymmetryLock available in tandem and multi-transmitter and/or receiver operation
Frequency approvals available for worldwide deployment
EN 13849-1 Category 3 PL-d, EN 60204-1, EN 60204-32, CE Compliant, RED compliant
Standard one-year product warranty
Manufactured in an ISO 9001:2015 certified operation
