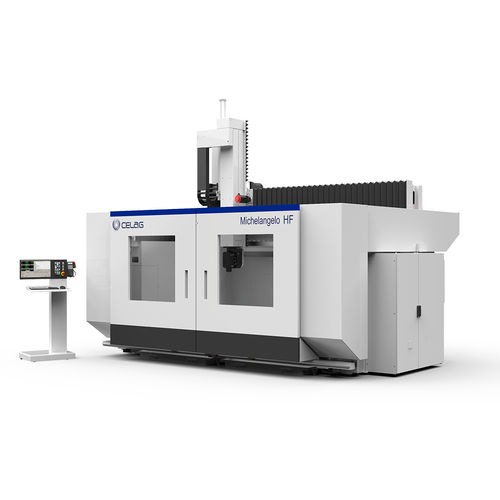

5-axis CNC machining center MICHELANGELO HF
verticalfor aluminumfor wood

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for aluminum, for wood, for composites, for plastics
Other characteristics
high-speed, compact, high-precision, high-productivity
X travel

2,840 mm, 3,000 mm (112 in)

Y travel

1,740 mm, 1,900 mm (69 in)

Z travel

1,200 mm, 1,250 mm (47 in)

Rotational speed

Min.: 7,500 rpm (47,124 rad.min-1)

Max.: 24,000 rpm (150,796 rad.min-1)

Power

Min.: 10 kW (13.6 hp)

Max.: 25 kW (33.99 hp)

Description

THE BEST QUALITY, FLEXIBILITY AND PRODUCTIVITY Michelangelo is a range of last generation 5-axis interpolating machining centres, designed to work the most advanced material; composites, special resins, plastics, aluminium, light alloys, wood. A compact design with a large machining volume together with high precision and reliability make it the ideal choice to be efficient in the company and offer the highest quality available today. Created to perform at high speed on the most complex 3D shapes, it is used in many sectors, from molds to thermoformed components to industrial components for the automotive industry, boats, aeronautics, furniture and more. High torque even at low speed. The HSK interface guarantees torque transmission, speed and precision when changing tools. The Michelangelo HL machining center can be equipped with an extremely effective suction system to be able to deal with even the most difficult materials. The Michelangelo HL work center can be equipped with a system of sky bellows that limit the escape of fumes, dust and shavings from the work area. In addition to preserving the machine mechanics, this application also helps to maintain a cleaner and healthier environment for the operator MATERIALS TREATED The machining centers, as we said earlier, are widespread and appreciated in industrial processes also for their ability to work many materials. Plastic Resins Composite materials Aluminum Advanced materials Polyurethane Wood MDF Polystyrene eps and xps
