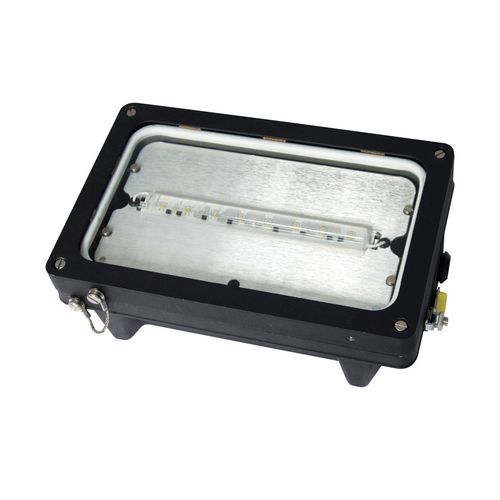

Emergency lighting NELE series

LEDincandescenttungsten halogen

The NexLED bulkhead luminaire utilises high output 1 Watt light emitting diodes (LED's) that provide a white, instant light that is highly visible. Bulkheads offer a compact and versatile solution for many applications, especially in exposed conditions with high levels of dust and moisture. The enclosure is corrosion resistant marine grade aluminium with a toughened glass cover, silicone rubber sealing gasket and stainless steel fixings. The product can be fitted with either two or eight low power LED's making the NexLED an efficient luminaire for both mains and emergency mode operation from the backup battery. The use of LED technology means that light output in emergency mode is identical to mains operation, lamps switch off for one second when the mains fail then restart to indicate battery operation. The bulkhead is simple to install, easy to maintain and durable. The LED's are more efficient than incandescent and most tungsten halogen lights and operate for up to 80000 hours eliminating relamping in many applications. This new lamp technology emits no heat forward, no ultra violet light, is mercury free and is not susceptible to vibration. Suitable for a wide range of ambient temperatures from -45°C to +55°C with light output unaffected by low temperatures. Where emergency lighting is required in ambient temperatures below -5°C the NexLED is available with a heated battery compartment which maintains the batteries at the required temperature to sustain emergency duration. ATEX CertifiedGOST ApprovedIECEx Compliant
