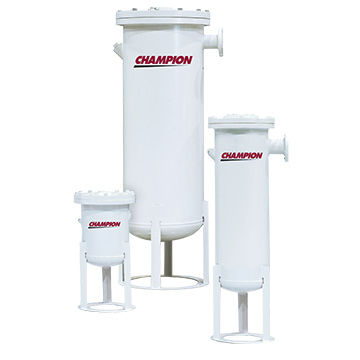

Oil mist collector CFE series

filtration mediacoalescing

Champion CFE Series Mist Eliminators are used to reduce energy costs and remove oil and water aerosols from compressed air systems. They also protect products and processes from contamination, increase the life of pneumatic equipment, help eliminate paint appearance and adhesion problems, and keep pneumatic instruments operating. Features 125 - 3000 SCFM Maximum working pressure: 150 PSIG Maximum operating temperature: 150°F Low pressure drop, saving energy Long life mist eliminator element - standard Automatic condensate drain - optional Benefits Low operating costs Low pressure drop: 0.5 to 1 psi (0.04 to 0.07 kgf/cm2) Typical coalescing filters operate at 3 to 6 psi (0.21 to 0.42 kgf/cm2) requiring the air compressor to operate at higher operating pressures, increasing power requirements by 2.5% or more Long element life: 8 to 15 years, with a large in-depth bed, element life is much longer than conventional oil removal filters Virtually maintenance free Extra protection Captures and retains large slugs of oil and water, should drain trap fail. Protects downstream equipment from contamination should oil separator on rotary screw compressor fail Removes submicronic particles 100% of particles 3 micron and larger 99.98% of particles 0.1 micron and larger 0.5 ppm w/w maximum liquid content after filtration 1000 ppm maximum inlet liquid loading
