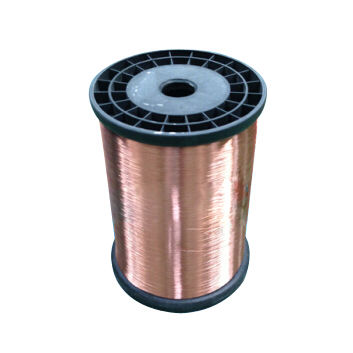

Copper electrical wire CCAQA

enameledaluminumpolyurethane

Specifications ECCA wire 1.Thermal class:130~220 2.Size:0.12~3.2mm 3.Enamel type:polyester;polyamideimide;polyurethane Enameled Copper clad Aluminum wire advantage: 1.Polyester and modified polyester enameled wire,polyester enameled wire class is 130°C,modified polyester enameled wire class is 155°C,the product with high mechanical strength,and it has good elasticity,resistance to blow,adhesion,electrical properties and solvent resistance performance. 2.Polyurethane enameled wire,thermal class:130°C ,155°C ,180°C ,good resistance to high frequency,easy colored and good resistant to moisture. 3.QZY enameled wire,thermal class is 180°C,good heat resistance and softening breakdown to the high temperature,high mechanical strength,solvent resistance and freeze resistance. 4.QZY/QXY enameled wire thermal class is 200°C,220°C,with high heat resistance,resistance to rreezing,cold and radiation. high mechanical strength,electrical stability,good chemical resistance and coolant resistance performance. Application: Motor of high heat resistance requirements,electric wire cable device,instrument,telecommunications equipment and electrical appliances product,refrigerator compressor,air conditioning compressors,electric tools,explosion-proof electric motor.
