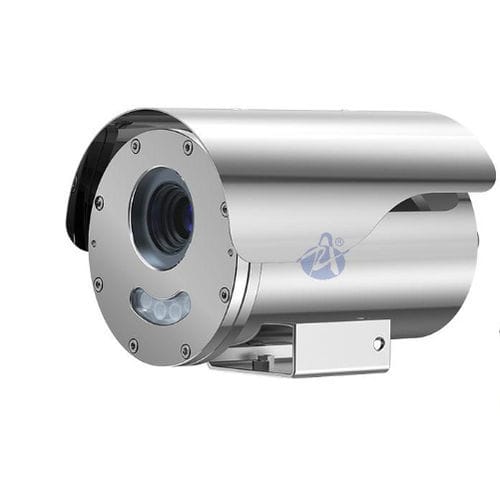

IR camera CZ109

digital3DWDR

The ATEX & IECEx certified CZ109 are ZUOAN designed classic explosion-proof corrosion-proof camera, which can load various camera. This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment. Main Features: ·ATEX, IECEx certified ·Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22 ·Ex db IIC T6 Gb/ Ex tb IIIC T80℃Db ·Stainless steel 304/316L ·Optional electropolished or corrosion resistant paint finish · Enclosure Protection:IP66 IP68 (2m 2h) IP69 ·2MP, Max. 1920*1080 resolution ·1/2.8" progressive scan, CMOS image sensor ·Motorized vari-focal lens 2.7-13.5mm ·Power input: DC12V or POE power supply ·H.265 codec, high compression rate, ultra-low bit rate ·Built-in IR LED, up to 60m distance ·ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments ·Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. ·Intelligent monitoring: Intrusion, tripwire. Camera Image Sensor 1/2.8" CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.002 [email protected] (Color, 30 IRE) 0.0002 [email protected] (B/W, 30 IRE) 0 Lux (Illuminator on) S/N Ratio > 56 dB
