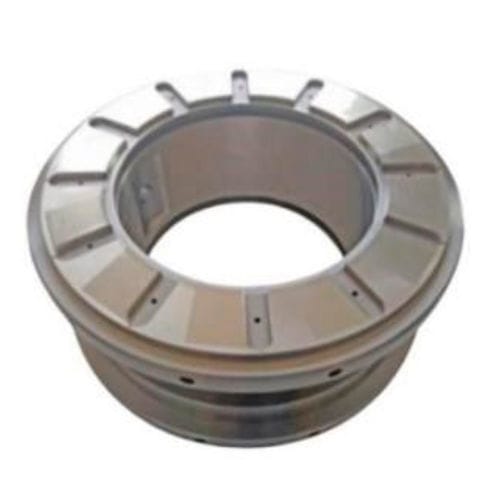

The tilting pad slide bearings can provide ideal dynamic performance, such as stiffness and damping, to ensure the stability of the rotor system in rotating machinery. By utilizing advanced specialized production lines, high-precision dedicated fixtures, and the latest testing equipment, we effectively ensure the dimensional accuracy and positional tolerance of the products, ensuring stable and reliable bearing dynamics. The shaft diameter ranges from 25mm to 500mm, and the tilting pad elements are made of alloy steel or copper-chromium alloy. The support points of the tilting pad elements are either linear or spherical. Our company can achieve a maximum linear speed of 125m/s. Since these bearings are used in equipment with axial thrust, such as compressors and expanders, they must be capable of withstanding axial thrust.
Sliding bearing application: high speed gear box, high speed motor, fan, high pressure motor, pump, expander, generator, steam turbine, machine tool and other high speed rotating equipment, used to support the rotor operation.
