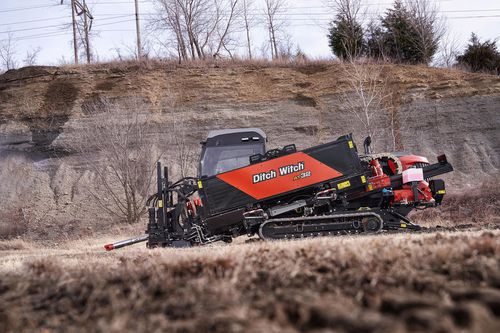

Horizontal directional drilling rig AT32

soil investigationcrawlerrotary

BIG ON ROCK PERFORMANCE. SMALL ON FOOTPRINT. Bursting at the seams with power, the AT32 is the next generation of all-terrain drilling, packing performance and strength into a sleek package. 1,200 ft*lbs 11627 N*m) of inner rotational torque allows for greater efficiency and better production in hard formations. The AT32 has increased drill pipe capacity, now allowing 450 ft (137.2m) of ail-terrain pipe or 600 ft |182.9m) of dirt pipe with réversible pipe box onboard, increasing productivity. Patented "slide cartridge" provides backup for the carriage rollers allowing operators to complété a job without stopping to replace failed rollers. . 70 GPM [265 l/min) fluid pump supplies drilling fluid for better productivity downhole. Unique "add-a-pipe” design allows operators to manually insert additional pipe, improving productivity. An integrated wireless remote control gives operators the ability to set up the rig outside of the cab, allowing more précisé positioning of the unit on the job. Controller includes multi-mode ground drive, dual independent stabilizers, stake down, cab traverse, and dual pivot.
