ORP electrochemical electrode S406VG seriesglassprocess
Add to favorites
Compare this product
Characteristics
- Type
- ORP
- Material
- glass
- Applications
- process
Description

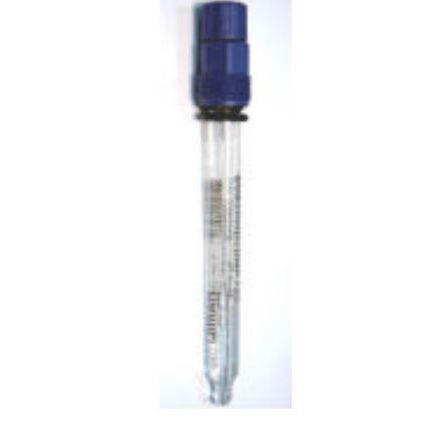

S406/V/G Au Redox Electrode for general applications
Monotubular Combined of glass ref. GOLD Polymer filling. Nr. 1
diaphragm without porous baffle Dimensions Ø=12mm - L=120mm.
Connection to the process PG 13.5. Screw head S/7
Measure Range ± 1000 mV
Max operational Temperature 80°C
Max Operational Pressure 6 bar
Minimum conductibility of the liquid 2 µS
Cable from 5 mt. With screw connector (other upon demand)
