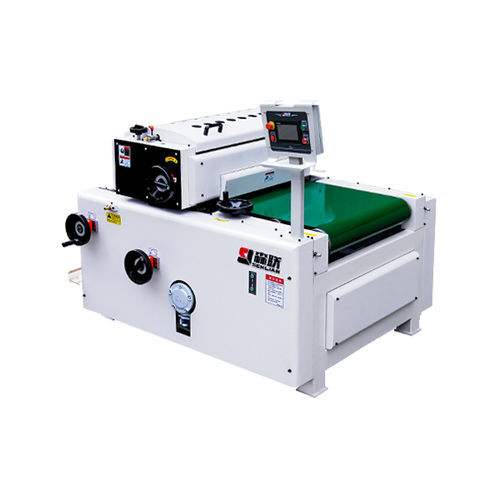

UV coater SL-TRFT

rollerstainless steel

Function: it applies the two application rubber roller and doctor stainless steel roller up and down to cover the liquid paint on two face of sheet circularly evenly, design special conveyor after coating to prevent harm paint layer on the back of sheet. It is suitable to fine coating flat sheet which very thin and slight, low coating effect requirement of sheet back. · Application sheet: metal plate, wood veneer, glass, etc. · Application paint: UV, water based paint, PU, PE, NC, AC, special paint, etc. Application roller optional · We offer most rubber roller optional that expert to meet various paint, board material and coating effect. · According to different coating thickness demands, you can choose single, double, three or special roller structure. · Configuration also flexible based on standard machine, customized function is able to design and come true. Roller quick disassembling Each rubber roller connect to the motor by NSK bearing with ceramics protective shield. Design quick disassembling structure that convenient to repair or change rubber roller. Dovetail groove roller lift The roller apply dovetail groove structure lifting instead of screw drive structure, roller lifting controlled by electric button that stably and easily. Assist by hand wheel ensure more accurate. Push screw compensator When push the gap between the application rubber roller and doctor steel roller, this screw compensator device can easily adjust balance to ensure the whole gap keep the same.
