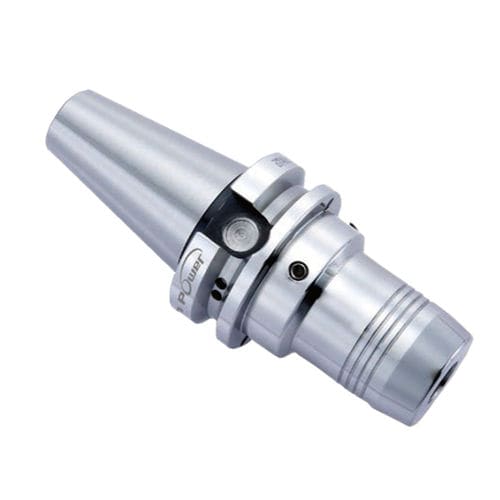

Collet tool holder BA2BT40080065Ahigh-rigidityhigh-accuracycustom
Add to favorites
Compare this product
Characteristics
- Clamping method
- collet
- Other characteristics
- high-rigidity, high-accuracy, custom, hydraulic
Description
Hydraulic Tool-Holder
Reliable for clamping reiteration.
High Rigidity.
High Accuracy, No Collet used.
High Clamping Force.
Our hydraulic chuck can obtain the run - out within 3µm(T.I.R) at the position 2.5*d1 from the nose.
* Custom - Built products are available on request.
BA2BT40080065A
Type:BT40*CHY6-65
d1:6
D2:26
D3:29
D4:49.5
L1:65
L2:Min27.5 Max37.5
L3:23
G:M5
BA2BT40082065A
Type:BT40*CHY8-65
d1:8
D2:27
D3:30
D4:49.5
L1:65
L2:Min27.5 Max37.5
L3:23
G:M6
BA2BT40082065A
Type:BT40*CHY10-65
d1:10
D2:29
D3:32
D4:49.5
L1:65
L2:Min32.5 Max42.5
L3:23
G:M8x1
BA2BT40083065A
Type:BT40*CHY12-65
d1:12
D2:31
D3:34
D4:49.5
L1:65
L2:Min37.5 Max47.5
L3:23
G:M8x1
BA2BT400484065A
Type:BT40*CHY14-65
d1:14
D2:33
D3:36
D4:49.5
L1:65
L2:Min37.5 Max47.5
L3:23
G:M10x1
BA2BT40085065A
Type:BT40*CHY16-65
d1:16
D2:36
D3:40
D4:49.5
L1:65
L2:Min42.5 Max52.5
L3:23
G:M10x1
