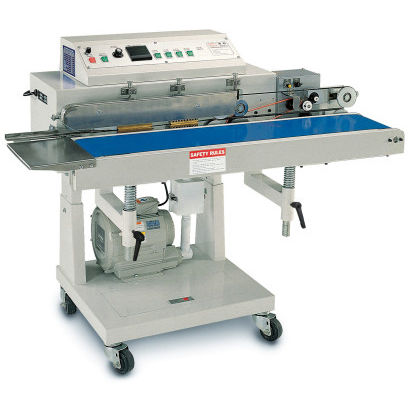

Automatic sealing machine CC-7209

for suction systems

CC-7209 Description PATENT-NO.15114/114403/170783 Mounted with an exclusive suction device for fully sucking air out of the bag before sealing. Virtually extends expire date, reduces package volume and saves storage space. Standard design with fixed stand. Fully gear drive assures long service life and superior sealing quality. Equipped with printer for printing date, lot no…etc. Extensible stand (optional). Can be moved into the machine frame when not in use for saving space. Conveyor stand adjustment is fast accomplished in only one second. Features same as CC-7203, but except this machine has different structure, vacuum suction device and variable speed unit. Specification Max.conveyor belt load - 20 kg Steel band size (W×L) - 10×1250 mm Conveyor belt size (W×L) - 200×2250 mm Nylon band (W×L) - 5×690(1250) mm Conveyor speed - 0–10 M/min Electricity - 110/220 V, 1PH Power - 1600(1700) W Motor - 90 W Conveyor table height adjustment - 0–70 mm Heating temp range - 0–399 ℃ N.W/G.W - 100/130(110/140) kg Machine dimensions (L×W×H) - 130×70×100 cm Packing dimension (L×W×H) - 130×80×115 cm
