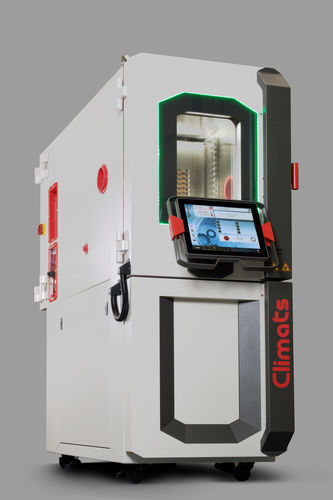

Climate chamber EXCAL²humiditytemperatureESS
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- for rapid temperature cycling, ESS, aging
- Product applications
- for electrical equipment, for battery, for solar panels, for vehicles, for automobiles, for materials testing machines, for tensile testing machine, for electronic circuit boards, for heat pump, air conditioner, for semiconductors, for test benches, for sensors, for composite materials, for cement, for concrete
- Application domain
- for the aeronautical industry, for the pharmaceutical industry, European standards-compliant, international standards-compliant, for metrology laboratories, for the food and beverage industry, for the cosmetics industry
- Configuration
- compact, vertical, on casters
- Options and accessories
- with constant temperature and humidity control, with cyclical temperature/humidity control, touchscreen-controlled, temperature regulator
- Other characteristics
- low-temperature, for high temperatures, high-capacity
- Capacity
Max.: 1,800 l
(475.51 gal)Min.: 140 l
(36.98 gal)- Temperature
Max.: 250 °C
(482 °F)Min.: -90 °C
(-130 °F)- Interior length
540 mm, 700 mm, 900 mm, 1,000 mm, 1,150 mm
(21.26 in, 27.56 in, 35.43 in, 39.37 in, 45.28 in)- Interior height
700 mm, 900 mm, 1,000 mm, 1,120 mm
(27.56 in, 35.43 in, 39.37 in, 44.09 in)- Interior depth
Max.: 1,500 mm
(59.06 in)Min.: 400 mm
(15.75 in)- External length
785 mm, 980 mm, 1,185 mm, 1,285 mm, 1,485 mm
(30.9 in, 38.6 in, 46.7 in, 50.6 in, 58.5 in)- External height
1,840 mm, 2,060 mm, 2,170 mm, 2,275 mm
(72.44 in, 81.1 in, 85.43 in, 89.57 in)- External depth
Max.: 2,670 mm
(105.12 in)Min.: 1,480 mm
(58.27 in)
Description
The new EXCAL³ series represents all of Climats' expertise and innovation.
More efficient and ergonomic, the 8 standard chamber sizes and their numerous features are sure to meet your needs.
You can always optimize your climate chamber by combining multiple standardized accessories and measurement tools.
EXCAL³ now incorporates the natural refrigerant R-744 (CO₂), which is non-flammable, non-toxic, and has a very low global warming potential (GWP = 1). Environmentally responsible, the new Climats test chambers are fully compliant with Regulation (EU) No. 573/2024 “F-Gas III.” This solution enables high-performance testing down to –50°C, while eliminating the requirement for annual leak detection inspections.
EXCAL integrates the SPIRALE reference control system, the human-machine interface designed for all your testing needs.
The control station features the latest industrial innovations:
• adjustable panel PC running Windows
• 15-inch multi-touch capacitive screen, IP66
• SSD storage
• 2 USB ports and network connectivity on the front panel with automatic detection
Centralized Connections: User Interface Panel (UIP)
Committed to user comfort and driven by the desire to continuously improve our products, we have created a space entirely dedicated to your connections. A panel located on the side is entirely dedicated to this purpose.
As standard, you have:
• a secure outlet
• a thermal fuse
• status indicators
• 4 dry contacts configurable via SPIRALE VISION
Other innovations:
• 2 movable probes for precise control tailored to your products
• an RS232 interface
• 4 digital inputs/outputs, 4 analog inputs/outputs configurable via SPIRALE VISION
• an Ethernet connection for remote control of your chamber
EXCAL³ also features:
• Dual-flow ventilation: optimal heat exchange
thanks to multi-directional product exposure
• High-performance humidity control: direct humidity measurement combined
with low-pressure steam generation
• Two cooling modes to choose from: air or water
• Multiple cooling speed performance levels
• Full customization with over 200 options
Translated with DeepL.com (free version)
More efficient and ergonomic, the 8 standard chamber sizes and their numerous features are sure to meet your needs.
You can always optimize your climate chamber by combining multiple standardized accessories and measurement tools.
EXCAL³ now incorporates the natural refrigerant R-744 (CO₂), which is non-flammable, non-toxic, and has a very low global warming potential (GWP = 1). Environmentally responsible, the new Climats test chambers are fully compliant with Regulation (EU) No. 573/2024 “F-Gas III.” This solution enables high-performance testing down to –50°C, while eliminating the requirement for annual leak detection inspections.
EXCAL integrates the SPIRALE reference control system, the human-machine interface designed for all your testing needs.
The control station features the latest industrial innovations:
• adjustable panel PC running Windows
• 15-inch multi-touch capacitive screen, IP66
• SSD storage
• 2 USB ports and network connectivity on the front panel with automatic detection
Centralized Connections: User Interface Panel (UIP)
Committed to user comfort and driven by the desire to continuously improve our products, we have created a space entirely dedicated to your connections. A panel located on the side is entirely dedicated to this purpose.
As standard, you have:
• a secure outlet
• a thermal fuse
• status indicators
• 4 dry contacts configurable via SPIRALE VISION
Other innovations:
• 2 movable probes for precise control tailored to your products
• an RS232 interface
• 4 digital inputs/outputs, 4 analog inputs/outputs configurable via SPIRALE VISION
• an Ethernet connection for remote control of your chamber
EXCAL³ also features:
• Dual-flow ventilation: optimal heat exchange
thanks to multi-directional product exposure
• High-performance humidity control: direct humidity measurement combined
with low-pressure steam generation
• Two cooling modes to choose from: air or water
• Multiple cooling speed performance levels
• Full customization with over 200 options
Translated with DeepL.com (free version)
