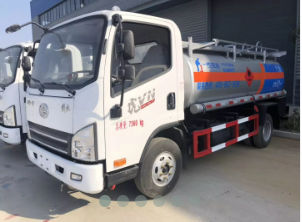

Faw 4x2 5m3 Fuel Tank Oil Transport Truck
Item No. Parameters
Overall Dimension 5995*2100*2500 mm/ 5900*2100*2500 mm
Drive model 4x2, new condition
Gross Vehicle Weight 7350 kg
Curb Weight 2870 kg
Loading Volume 5cbm
Wheel Base 3300 mm
Front/rear Overhang 1032/1663 mm
Front/rear Tread 1506/1530 mm
Approach/Departure Angle 19/14 degree
Engine Chaoyang Engine, CY4102 C3F, Diesel Engine, Four Stroke, 4 Cylinder in line.
Engine horsepower 95 HP Euro III
Displacement 3.96 L(Diesel)
Full loading Fuel Consumption Rate 210G/KW.H
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Backward Gear
Tire 7.00-16, 6 pieces with 1 spare tire.
Volume Capacity 5CBM
Thickness of the tank 5mm Q235 carbon steel
Dimension 4050*1750*1150 mm
Capacity 5CBM
Manhole cover ∮500mm
Discharging Pipe 4”rubber hose, 2 pcs, 6m long
Compartment 1 compartments, 1 Pumps.1 bottom valves etc.
Advantages of Fuel Tanker Truck & Chemical Liquid Trucks
The tank used advanced butt welding technology using high pressure gas leak detection after finished the tanks, so that the tanks has the characteristics of high strength, stable, sage, etc.
Alcohol, chemical tankers produced by South Korean imports of stainless steel, thickness can be 4 5 8mm.
All tankers of sulfuric acid, hydrochloric acid, alkali liquor are using roto molding by once. Thickness can be 12 to 16mm. After welding the tank using sand blasting process, achieved anti-rust.
