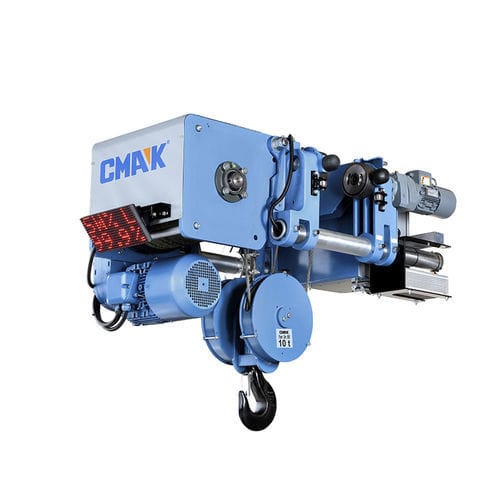

Electric cable hoist NXS Series

double-girderheavy-duty400 V

Heavy-Duty Electric Wire Rope Hoist – NXS Series | Up to 160t, 240m Lift The CMAK NXS Series is a robust, high-performance electric wire rope hoist engineered for double-girder overhead crane systems and industrial lifting applications. Designed with modular casted chassis and direct-driven travel wheels, it delivers smooth operation, high endurance, and low maintenance. With lifting capacities up to 160 tons and lift heights up to 240 meters, the NXS Series suits long travel hoisting in sectors like steel production, shipbuilding, and infrastructure. Key Features: Modular design with plug-in electrical systems Fits 150–500 mm flange widths; compatible with all standard beams Large drum diameter and smart reeving minimize hook drift 2160 N/mm² wire rope – 5× longer service life Polymer rope guide with chemical resistance Inverter-controlled hoisting & cross-travel motors Regenerative braking system (optional) – up to 40% energy savings Overload limiter and top/bottom two-step limit switches Manual brake release and HoistSense+ (optional) Application Areas: Overhead bridge crane systems Gantry cranes and long travel cranes Steel plants, power stations, shipyards Warehouses and heavy manufacturing
