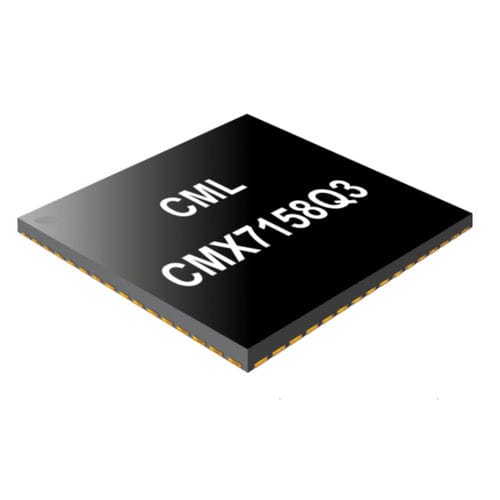

System-on-chip processor CMX7158

industrialdigitalaudio

The CMX7158 is a full-duplex, frequency inversion audio scrambler IC. This makes it a suitable device for use in multi-function audio systems as well as mobile and hand portable Cellular / Bluetooth / PMR / LMR radio systems. The device provides additional functionality to facilitate implementation including DTMF and Selcall signalling, VOX detection on both channels and a MIC AGC. There are flexible power saving modes and the production devices will be supplied as a FirmASIC® Function Image format in a 48-pin VQFN Q3 package suitable for use with the PE0402 evaluation kit. The device is realised using CML’s proprietary FirmASIC® component technology. A Function Image™ that defines the devices functionality is loaded at power-up, either from a host controller connected over the C-BUS interface or an attached serial flash memory device. Fully independent Tx and Rx paths Programmable Inversion points MIC path AGC VOX detection DTMF encoder / decoder Selcall encoder / decoder Digital Gain Adjustment C-BUS Serial Interface to Host µController Bypass mode for HD Audio (up to 7kHz) Clear Mode Tx Enable and Rx Enable outputs Flexible Powersave Modes Low-power 3.0 to 3.6V Operation Small 48-pin Q3 VQFN Package
