Machine tool vice

drillfor grinding machineshand

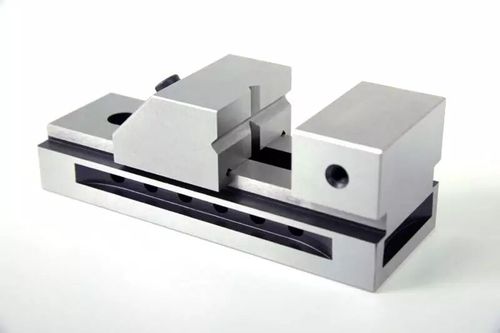

The Pull-Down Vice enables precise work with secure fixation. Clamping jaws with prism grinding. Ideal for drilling and milling. Robust Pull-Down Vice Our Pull-Down Vices are made of unalloyed, hardened tool steel and are therefore extremely robust and resistant. They are therefore ideal for demanding work on CNC milling machines or other machine tools with higher forces. This clamping mechanism thus offers a combination of precision and high clamping strength. No slipping or tilting There are seven different sizes of this pull-down vice to choose from, with clamping widths from 22 mm to 200 mm. An angular prism grinding on the movable clamping jaw ensures, on the one hand, firm and secure hold of the workpiece and on the other hand, helps to prevent tilting or slipping. Secure fastening of the Pull-Down Vice By using the grooves provided on the base of the small and large precision pull-down vices, they can be quickly and reliably attached to the T-slot plate, worktop or workbench using clamping claws. Using a hexagon socket screw, which is attached at a 45° angle, you can bring the jaw immediately into any position. At the same time, the positioning not only fixes the workpiece but also pulls it downwards. What is a Pull-Down Vice? Like conventional vices, you can use pull-down vices to hold workpieces securely in place during machining. This can be either during machining on a drill press or a CNC portal milling machine. A precision pull-down vice has two jaws between which the workpiece can be clamped. One of the two jaws is permanently mounted. At the same time, the second one forms the movable unit and is moved with a crank, rod or hexagon key.
