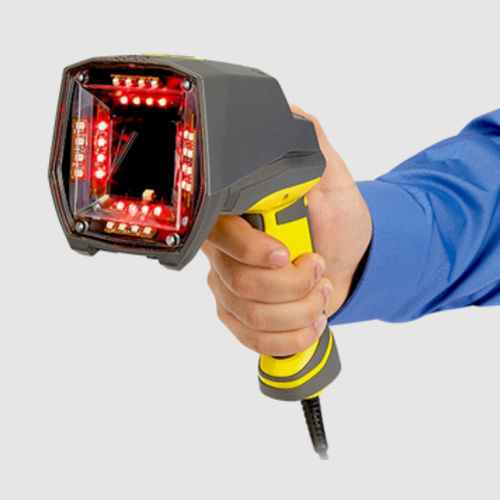

2D barcode verifier DataMan 8072V Series

Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines. The DataMan 8072 series barcode verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult direct part mark (DPM) codes. Combined with simple DataMan Setup Tool software, DataMan 8072 series verifiers deliver detailed, repeatable results. Multiple options for verifying codes on every surface DataMan 8072 verifier is the only verifier with all three, 30/45/90-degree, lighting angle options specified in the International Organization for Standardization (ISO) AIM DPM Quality Guideline (ISO/IEC TR 29158). It easily illuminates codes on textured, curved, and even highly reflective surfaces, reliably capturing and grading code images to demonstrate code quality compliance. Fast, accurate algorithms provide reliable and repeatable results High-speed location and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results. Detailed reports show whether codes meet industry standards and can be used to demonstrate compliance, as well as pinpoint printing and process control issues.
