Plastic part processing plant

Product description

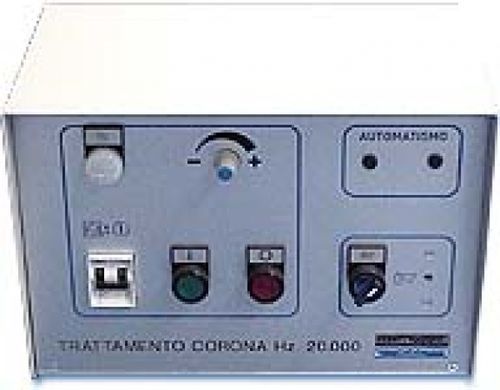

The corona surface treatment unit prepares low-energy plastic substrates (e.g. PE, PP) to improve ink wetting and adhesion by increasing surface tension through a controlled electrical discharge.

How it works
Two electrodes are positioned on the front and back of the part or web. A high-frequency electrical discharge between the electrodes activates surface molecules, creating polar species that increase surface energy and promote bonding between the substrate and printing inks.

System composition
The system includes a generator, a high-voltage transducer and a treatment station. The device operates at high frequency using semiconductor technology to deliver repeatable surface activation.

Application and integration
The unit is compatible with all Comec Italia machines and is mounted on the feeder. It must be requested in advance so feeders and supports can be prepared for installation and correct positioning.

Accessories

• AUR 360° — rotating part holder enabling 360° printing of spherical objects.
• RR and RRR devices — add-ons for 2‑ or 3‑colour pad printing machines.
• Automatic pads cleaning device — programmable system for automatic pad cleaning.
• Ink pump — 1 L reservoir pump that feeds ink directly to the inkcup.
• Pick And Place — automated loading and unloading system for production lines.
• Master Flow — hot-air drying unit for accelerating part drying after printing.
• Portable Hot Wind — handheld hot-air device delivering air flow between pad and workpiece.
• Hot Wind 200/300 — fixed hot-air unit positioned between pad and workpiece for drying.
• Quality control — vision and inspection systems for inline quality verification.

Technical characteristics / specifications

• Function: surface activation to increase surface tension and favour ink adhesion on plastics (PE, PP)
• Operating principle: electrical discharge between two electrodes generating polar species on the surface
• Components: generator, high-voltage transducer, treatment station
• Technology: high-frequency operation with semiconductor components
• Compatibility: applicable to Comec Italia machines; mounted on feeder
• Installation requirement: must be requested prior to delivery to prepare feeder and supports
