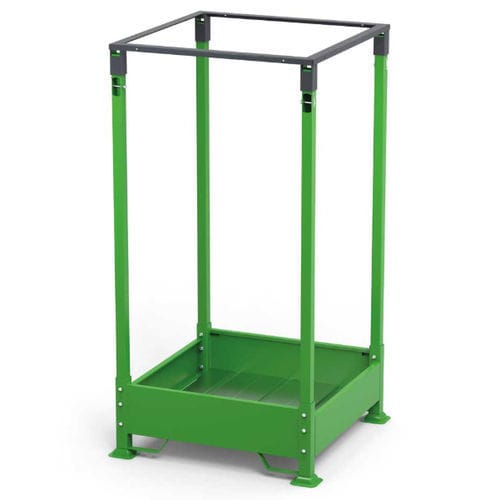

Big bag support 005475

floor-mounted

Brief description
Big bag holder for the easy handling of sacks and big bags used for separate collection. Enables use of pallet trucks or forklifts for handling and storage, facilitating and speeding up big bag operations. Available painted or galvanized; the galvanized version is suitable for outdoor use.

Extended description
Practical solution for accommodating sacks and big bags, with bottom supports for the bag and easy handling thanks to brackets integrated in the structure. Use, movement and storage of sacks and big bags are significantly simplified. Supplied with the base mounted and the four uprights inserted into the base; uprights must then be assembled in the correct position using the bolts included in the packaging.

Available colors

• RAL 2004 + RAL 7016
• RAL 5010 + RAL 7016
• RAL 5012 + RAL 7016
• RAL 6011 + RAL 7016
• RAL 6018 + RAL 7016
• RAL 7000 + RAL 7016
• RAL 7035 + RAL 7016

ARTICLE DETAILS
ART.;A;B;C;D;COLOR;ASSEMBLY;CAPACITY KG
005475;1088;1088;390;1995;RAL6018;assembled;1000
005482;1088;1088;390;1995;galvanized;assembled;1000

Features / technical specifications

• Overall dimensions: 1088 × 1088 mm
• Total height: 1995 mm
• Platform depth (C): 390 mm
• Capacity: 1000 kg
• Versions: painted (various RAL combinations) or galvanized (ideal for outdoor use)
• Supplied with base mounted; uprights included in packaging; assembly bolts included
• Suitable for handling with pallet truck and forklift (fork-accessible)
• Characteristics: robust and easy to assemble
