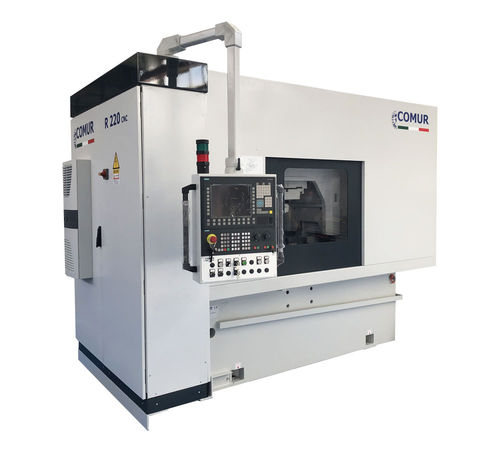

CNC gear shaving machine R 220

Product overview
The gear shaving machine COMUR R 220 provides high-performance shaving of gear wheels and shafts. Designed for hydraulic and automotive production, it can be equipped with an integrated rapid loading/unloading system configurable for shafts, pump gears and gear wheels. The machine also supports direct integration with an anthropomorphic robot, with or without the integrated loading system.

Key features

• Max. module: 8 mm
• Workpiece diameter range: 0–300 mm
• Distance A-axis to C/L table: 85–270 mm
• Distance B-axis to C/L table: 130–500 mm
• Max. shaving cutter (Ø x L): 254 x 50 mm
• Shaver speed range: 10–400 rpm

Technical data
Model: COMUR R 220
Application: Gear shaving for gear wheels and shafts
Target sectors: Hydraulic and automotive
Max. module: 8 mm
Workpiece diameter (min/max): 0–300 mm
Distance A-axis to C/L table (min/max): 85–270 mm
Distance B-axis to C/L table (min/max): 130–500 mm
Max. shaving cutter (Ø x L): 254 x 50 mm
Shaver speed range: 10–400 rpm

Characteristics / Technical specifications

• Integrated rapid loading/unloading system: configurable for shafts, pump gears and gear wheels
• Robot-ready design: interface for anthropomorphic robots
• Flexible configuration for various production runs
