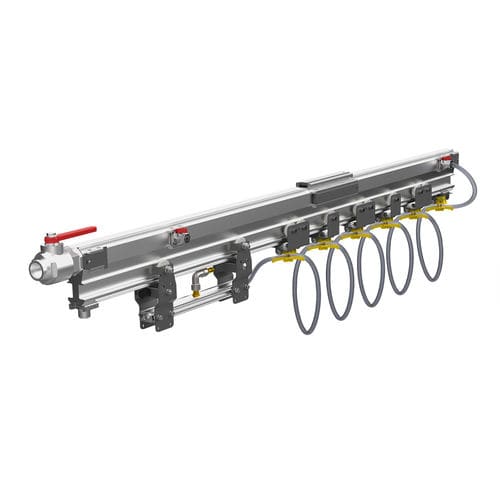

Compressed air delivery system W5 - traxX

for industrial applications

BestaPower W5 - traxX The automation solution with integrated compressed air line, sideways installed energy-guiding chain and optional position gauging system. Special features - The optimal compressed air supply, even for users with high air consumption, using integrated 2" compressed air pipe - High load capacity at light weight, due to special aluminum profile - Maximum flexibility, due to easy installable compressed air outlets - Flexible and adaptable, thanks to terminal profiling on all sides - Safe, low-friction guiding, thanks to I-profile trolleys with polyamide flange rollers - Automation with an optional, position gauging Main applications - Assembly lines in the automotive industry Standard application data - Suspension distance max. [m]: 4 - Point load max. [kg]: 100 - Section load max. [kg/m]: 250 - Travel speed max. [m/min]: 80 - System length Workstation length max. [m]: 20 - Capacity up to 2 x ½" compressed air hoses, 1 electrical cable 3 x 2,5 mm2 or 5 x 2,5 mm2 1 high-frequency line - Working pressure max. [bar]: 12 - Interfaces Feed through terminal boxes | 2" ball valve at feeding point - Compressed air outlet using R ½" inside thread (coupling optional) - Equipment carrier: Steel and/ or Aluminum - Working conditions Indoors [°C]: +5 up to +60 - Options: Position gauging system
