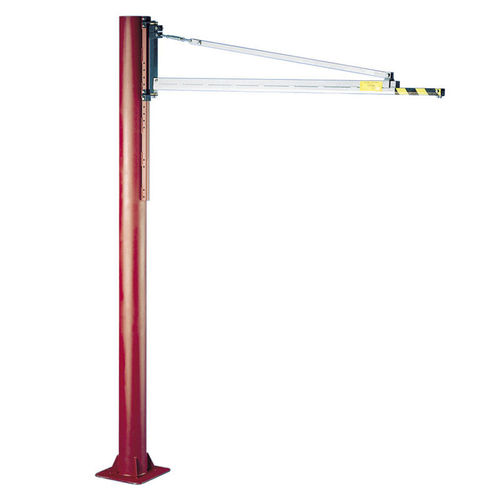

Free-standing jib crane

pillarrotating

Product overview
Column-mounted jib booms by Conductix-Wampfler are designed for installation on either an existing site column or a Conductix-Wampfler standalone column. They provide the same working envelope and functions as wall-mounted jib booms while allowing flexible placement anywhere on a solid floor or foundation. Tie-rod sets and foundation templates are not included and can be ordered separately.

Specification

• Mounting: column
• Swivel range: 240°
• Load-bearing capacity: 10–125 kg
• Standard boom lengths: 2 m, 3 m, 4 m, 5 m, 6 m
• Standard column heights: 3 m, 4 m
• Optional media supply: electrical and compressed air solutions on request
• Optional: swivel range lock

Accessories

• Equipment carrier
• Tool transporter
• Retractors
• Balancers

Applications
Designed to supply energy, services and tools to a defined workstation. Typical use cases include assembly stations, machine tending, maintenance areas and any hall environment where a flexible supply point is required.

Technical specifications

• Mounting type: column-mounted
• Swivel range: 240°
• Load capacity range: 10–125 kg
• Boom lengths (standard): 2, 3, 4, 5, 6 m
• Column heights (standard): 3 m, 4 m
• Optional features: integrated energy & compressed air supply, swivel range lock
