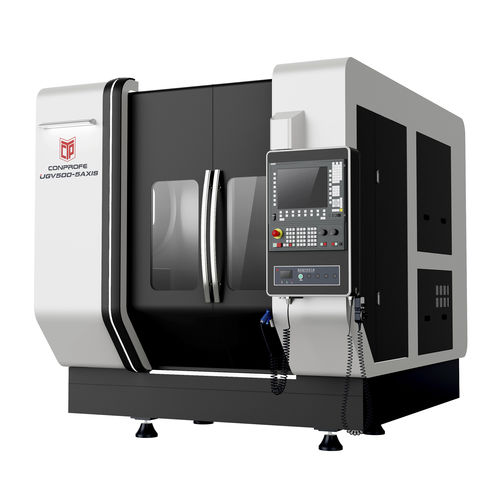

Ultrasonic CNC machining center UGV5005-axisverticalfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for steel, for cast iron, for copper, for non-ferrous metals, for stainless steel, for composites, for plastics, for ceramics, for glass, for quartz, for aluminum
- Structure
- gantry, column type, with rotary table
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools
- Associated functions
- milling, engraving, cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, for molds, for large workpieces, for the mold industry, for heavy loads, for small workpieces, for medical applications, for the steel industry, optical, dental, for the aluminum industry, for titanium, for aeronautics, for large-diameter parts, for small parts production, for cast iron
- Other characteristics
- high-rigidity, high-speed, for production, high-performance, high-productivity, for micro-machining, ultrasonic, single-head, all-in-one, compact, direct-drive, high-power, high-speed, high-precision, CE, with automatic tool changer
- X travel
520 mm
(20.47 in)- Y travel
520 mm
(20.47 in)- Z travel
460 mm
(18.11 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)- Table rotation (C axis)
360 °
- Work feed X-axis
20,000 mm/min
(13.12 in/s)- Work feed Y-axis
20,000 mm/min
(13.12 in/s)- Table load capacity
300 kg
(661 lb)- Tool weight (max)
6 kg
(13.2 lb)- Positioning accuracy
0.004 mm
(0.00016 in)- Repeatability
0.003 mm
(0.00012 in)- Weight
10,000 kg
(22,046.23 lb)- Overall length
2,220 mm
(87.4 in)- Overall width
3,217 mm
(126.7 in)- Overall height
2,800 mm
(110.2 in)
Description
Siemens 840Dsl simultaneous 5-axis system(RTCP function)
With ultrasonic function, MQL function optional
High speed, high efficiency, high precision
Compact structure, small size
Applications:
For machining hard-brittle materials(such as ceramic, glass, sapphire, quartz, silicon carbide, carbon fiber composite and so on) and metal workpieces(such as aluminum, copper, steel, cast iron and so on)
For machining workpieces with curved and complex structure
Applied industries: 3C, aerospace, high-end medical, automobile, new-energy, 5G
Standard Configuration:
Coolant System
Centralized Automatic Lubrication System
Spindle Chiller
Contact Tool Setter
HEIDENHAIN Linear Encoders
Handwheel Controller
Electrical Cabinet Heat Exchanger
Blow Gun
LED Work Light
Three-color Alarm Light
Safety Interlock
5-axis Simultaneous Machining (with RTCP Function)
Anti-collision System
Optional Configuration:
High Precision 3D Probe
Laser Tool Setter
Ultrasonic Amplitude Measuring Instrument
Permanent Magnet Synchronous Electrical Spindle
Oil-mist Collector
Automatic Door
VIDEO
Catalogs
UGV-500
2 Pages
Other Conprofe products
CNC 5-AXIS Vertical Machining Center
