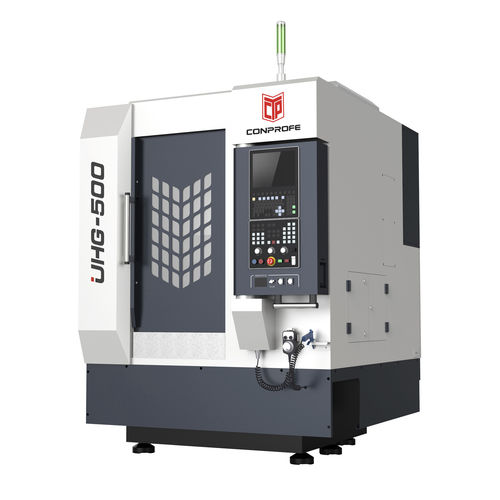

Graphite machining CNC machining center UHG-5003-axisverticalgantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry, with moving table, traveling-column
- Machined material
- for stone
- Spindle mount
- HSK-E40, HSK-E32
- Number of tool stations
- 12 tools, 14 tools
- Applications
- cutting, drilling, for the automobile industry, for the aeronautical industry, for aeronautics, for medical applications, for graphite, for drilling, for small parts production, for graphite machining, optical, dental, for small workpieces
- Other characteristics
- high-precision, milling, high-speed, high-performance, compact, high-rigidity, high-productivity, high-power, single-head, CE, for micro-machining, for production, ultrasonic, engraving
- X travel
500 mm
(20 in)- Y travel
400 mm
(16 in)- Z travel
230 mm
(9 in)- Rotational speed
Max.: 40,000 rpm
(251,327 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
6 kW, 7.5 kW
(8.16 hp, 10.2 hp)- Work feed X-axis
10,000 mm/min
(7 in/s)- Work feed Y-axis
10,000 mm/min
(7 in/s)- Table load capacity
200 kg
(441 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.006 mm
(0 in)- Repeatability
0.004 mm
(0 in)- Weight
3,500 kg
(7,716.18 lb)- Overall length
1,570 mm
(61.8 in)- Overall width
1,890 mm
(74.4 in)- Overall height
2,275 mm
(89.6 in)
Description
High speed, high efficiency, high precision
Ultrasonic function optional
Applications:
For machining graphite workpieces
Applied industries: 3C, aerospace, high-end medical, automobile, new-energy, 5G
Standard Configuration:
Centralized Automatic Lubrication System
Handwheel Controller
Electrical Cabinet Heat Exchanger
Three-color Alarm Light
Spindle Chiller
Blow Gun
LED Work Light
Safety Interlock
Optional Configuration:
High Precision 3D Probe
Vacuum Cleaner
4-/5-axis Rotary Table
Automatic Door
Contact Tool Setter
Laser Tool Setter
Extended Tool Magazine (ETM-14)
