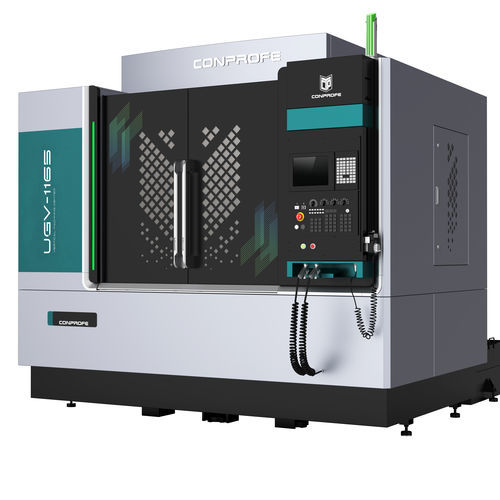

3-axis CNC machining center UGV-1165verticalBT 40HSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63
- Number of tool stations
- 24 tools, 30 tools
- Applications
- for the mold industry, for medical applications
- Other characteristics
- high-performance, high-productivity, high-precision, ultrasonic
- X travel
1,100 mm
(43 in)- Y travel
650 mm
(26 in)- Z travel
600 mm
(24 in)- Rotational speed
Max.: 18,000 rpm
(113,097 rad.min-1)Min.: 9,600 rpm
(60,319 rad.min-1)- Power
20 kVA, 22 kVA, 23 kVA
(27.19 hp, 29.91 hp, 31.27 hp)- Work feed X-axis
10 m/min
- Work feed Y-axis
10 m/min
- Work feed Z-axis
10 m/min
- Table load capacity
800 kg
(1,764 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0 in)- Repeatability
0.005 mm
(0 in)- Weight
7,200 kg
(15,873.28 lb)- Overall length
2,760 mm
(108.7 in)- Overall width
3,000 mm
(118.1 in)- Overall height
3,100 mm
(122 in)
Description
Features:
1. Ideally suited for milling, drilling, boring, reaming, counterboring and tapping
2. High-torque and high-power ultrasonic sprindles adoptable for large volimes machining
3. Equipped with MQL internal cooling technology for cost reduction and efficiency, work well in both dry and wet cutting
4. High-rigidity structure and high dynamic respons for high-speed machining
5. High Precision Linear Encoder configurable to achieve full closed loop control
6. Mitsubishi M80 system (standard) and SIEMENS/FANUC system (optional) available
Application:
Ideally suited for machining small and medium-sized housings, plates, discs, valves, shells, molds and other complex parts in industries of precision parts, consumable electronics, hardware, automotive, medical equipment, etc.
