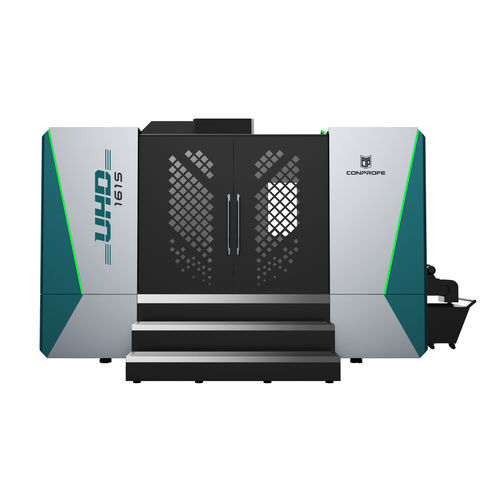

3-axis CNC machining center UHD-1615horizontalBT 40drilling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 40
- Associated functions
- drilling
- Applications
- deep hole
- Other characteristics
- ultrasonic
- X travel
1,600 mm
(62.99 in)- Y travel
1,200 mm
(47.24 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
32 kW
(43.51 hp)- Table load capacity
10,000 kg
(22,046 lb)- Weight
15,000 kg
(33,069.34 lb)- Overall length
5,900 mm
(232.3 in)- Overall width
6,250 mm
(246.1 in)- Overall height
3,410 mm
(134.3 in)
Description
Features:
1. High efficiency and high quality attributed to Ultrasonic Spindle and Minimum Quantity Lubrication (Through-Spindle) System to achieve higher drilling efficiency, longer tool life, and better hole wall quality while ensuring drilling accuracy
2. High drilling performance with outstanding length-diameter ratio (62:1 for HRC50 mold steel and 187:1 for ordinary steel)
3. Fully closed cover design against dust and explosion available
4. X/Y-axis multiple protection to extend the service life of guide rail and its screw rod
5. Fanuc controller equipped with high-torque servo spindle motor
