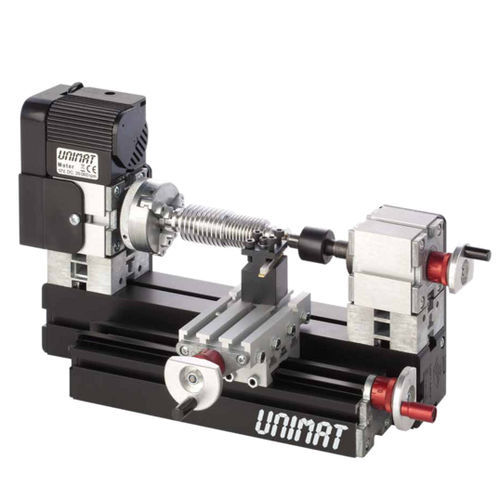

Sharp edge blade cutting machine Unimat ML 160200

for metalfor metal pipesdrilling

Slides, tailstock and intermediate pieces are composed of metal, manufactured and processed on cutting-edge CNC machines for perfect alignment. This guarantees a high level of precision despite the modularity of all machines. The UNIMAT MetalLine excels in model making, technical education, as well as in industrial use with features like: enhanced stability and precision of the entire system modular structure and easy handling lowest tolerances due to precisely fitting bearing seats true-running accuracy through dust protected industrial ball bearings adjustable dovetail guides flat milled, grinded and matched components increased wall thickness of the profiles (torsion resistant and stable) metal zero-adjustable hand wheels (0.05mm scale) The Functions Lathe With distance between centers of 90 mm (optionally expandable), center height of 50 mm and equipped with a two position tool post aluminum, brass, copper and other materials can be processed precisely. With the 3-jaw chuck work pieces with ø up to 56 mm (inside) and 65 mm (outside) can be clamped. Travel: Z-axis 145 mm, X-axis 32 mm Horizontal mill Using 3 slides allows for a wide range of milling tasks on different planes. Travel: X-axis 145 mm, Y- and Z-axis 32 mm (optionally expandable). Collets with a clamping range from 1 to 6 mm. Center Drilling With the precise collets, tool bits from 1 to 6 mm can be inserted into the head-spindle. The tailstock quill allows for a precise travel of 30 mm. The hand wheel with 0.05 mm scale guarantees perfect drilling results and exact depth-control. Drill Press / Vertical Mill Two slides are used for the set-up of the cross table, the third slide is used for the Z-axis.
